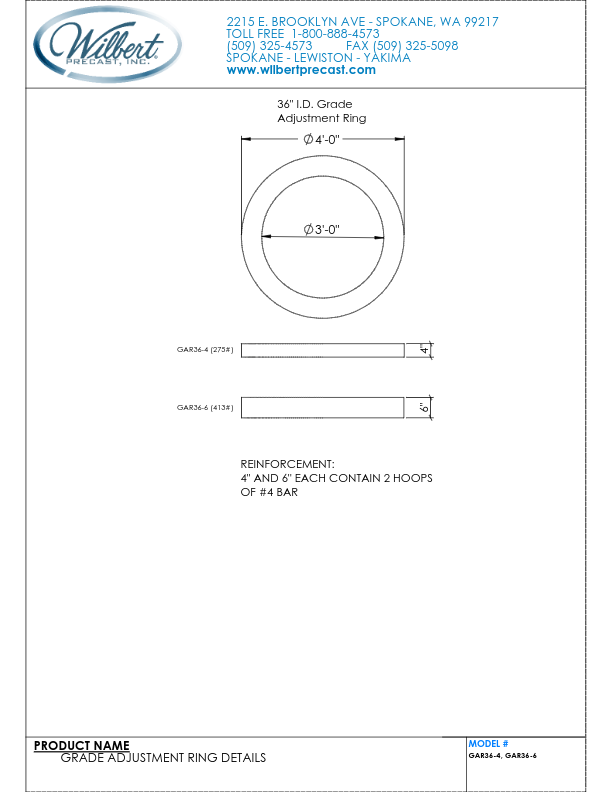

Grade Rings
Catch Basins
Drywells
Headwalls
Site Amenities
Raised Garden Beds
Window Wells
Precast Steps
Precast Decks
Benches
Picnic Tables
Bollards
Parking Bumpers
Precast Signs
Shoreline Solutions
Boat Ramps / Dock Planks
Shoreline Protection Panels
Dolosse
Water Control Structures
Box Culverts
Anchors
Cemetery & Funeral
Genesis Granite
Burial Vaults
Cremation Service Products
Specialty
Log Bunks
Redi-Rock®
RediStair®
Utility Buildings
Services
Delivery
Custom Design
Redi-Rock Install
Burial
Industries
Homeowners
Excavating Contractors
Commercial and City
Funeral Directors
Engineers
Electrical
Parks Departments
Public Works and Utilities
Genesis Granite
Mahoney Memorial
Projects
About Us
Company History
Our Mission
Company Safety
Meet our Team
Careers
FAQ
Contact
Drawing Library

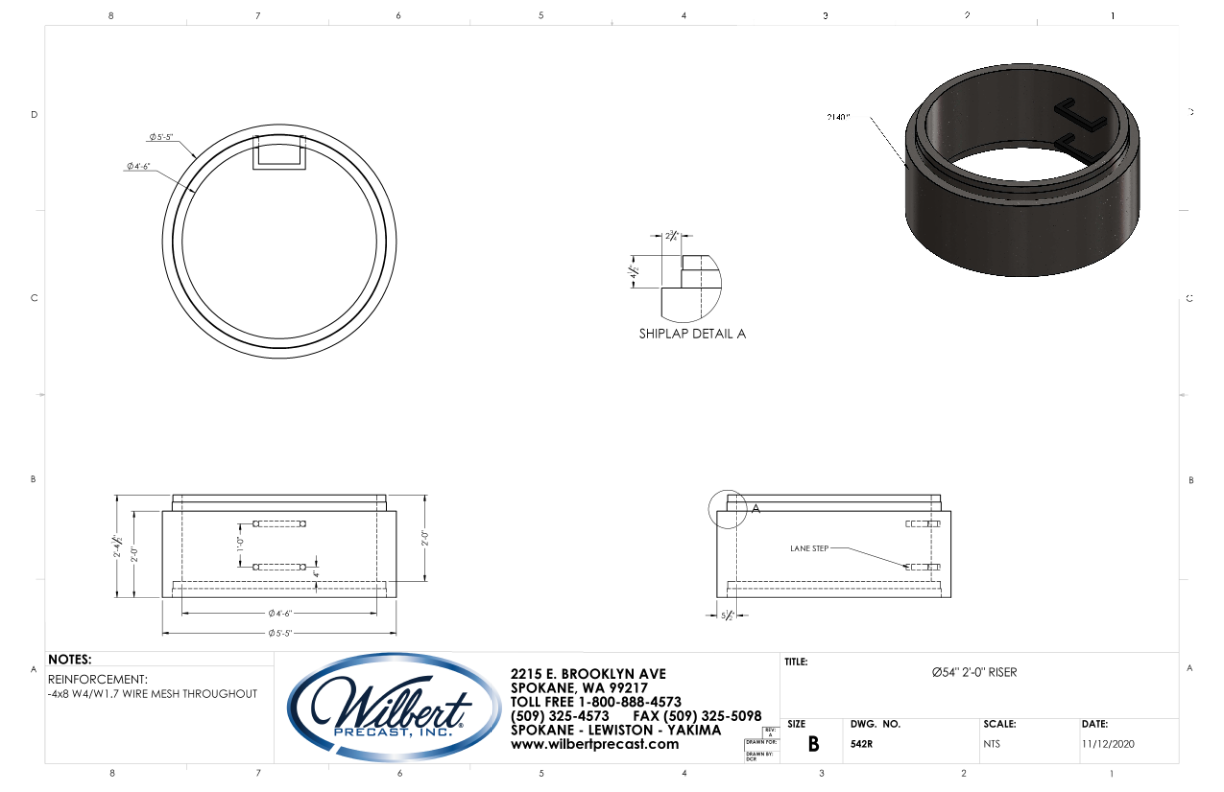

0542″ Manhole Riser
Weight: 2,140 lbs.
Product ID: 0542R
View PDF
1′-0″ Ground Rod
Dimensions: Ø1'-½" X 1'-0" Weight: 67 lbs.
Product ID: WPGR12
Product ID Double: Ground Rod Box 24
View PDF
1000 Gallon Dbl Compartment Mono Septic Tank
Dimensions: 8'-2" X 5'-7" X 5'-5" Weight: 989 lbs.
Product ID: 1627M
View PDF
1000 Gallon Dbl Compartment Mono Septic Tank – Heavy
Dimensions: 8'-2" X 5'-7" X 6'-2" Weight: 12656 lbs.
Product ID: 1627MTB
View PDF
1000 Gallon Dbl Compartment Septic Tank
Dimensions: 8'-0" X 5'-2" X 5'-5" Weight: 8868 lbs.
Product ID: 1627
Product ID Double: 1627M
View PDF
1000 Gallon Dbl Compartment Septic Tank – Heavy
Dimensions: 8'-0" X 5'-2" X 5'-11" Weight: 11598 lbs.
Product ID: 1627TB
View PDF

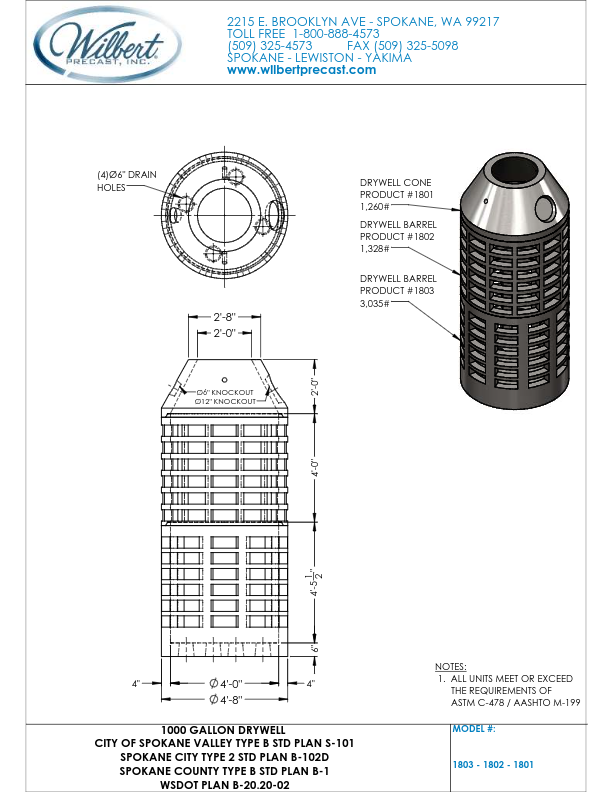

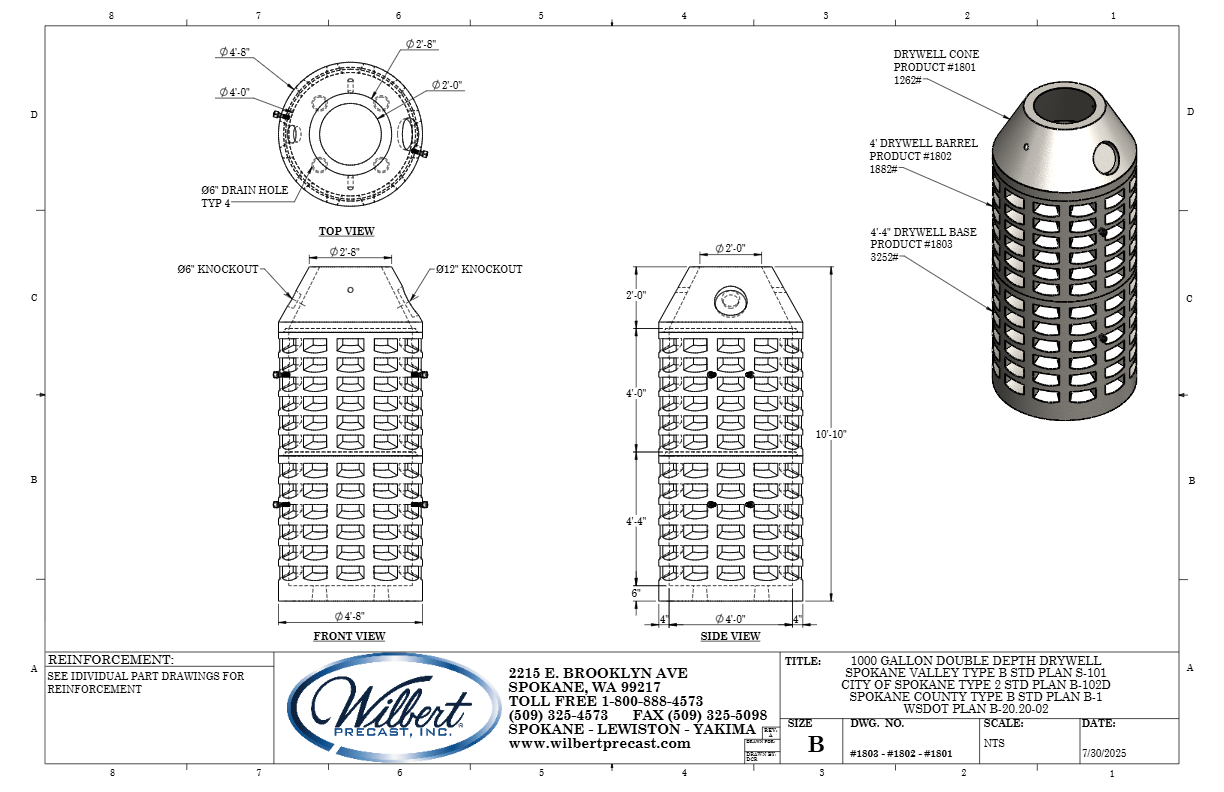

1000 Gallon Double Depth Drywell
Dimensions: Ø4'-8" X 10'-10" Weight: 6396 lbs.
Product ID: #1803, #1802, #1801
View PDF

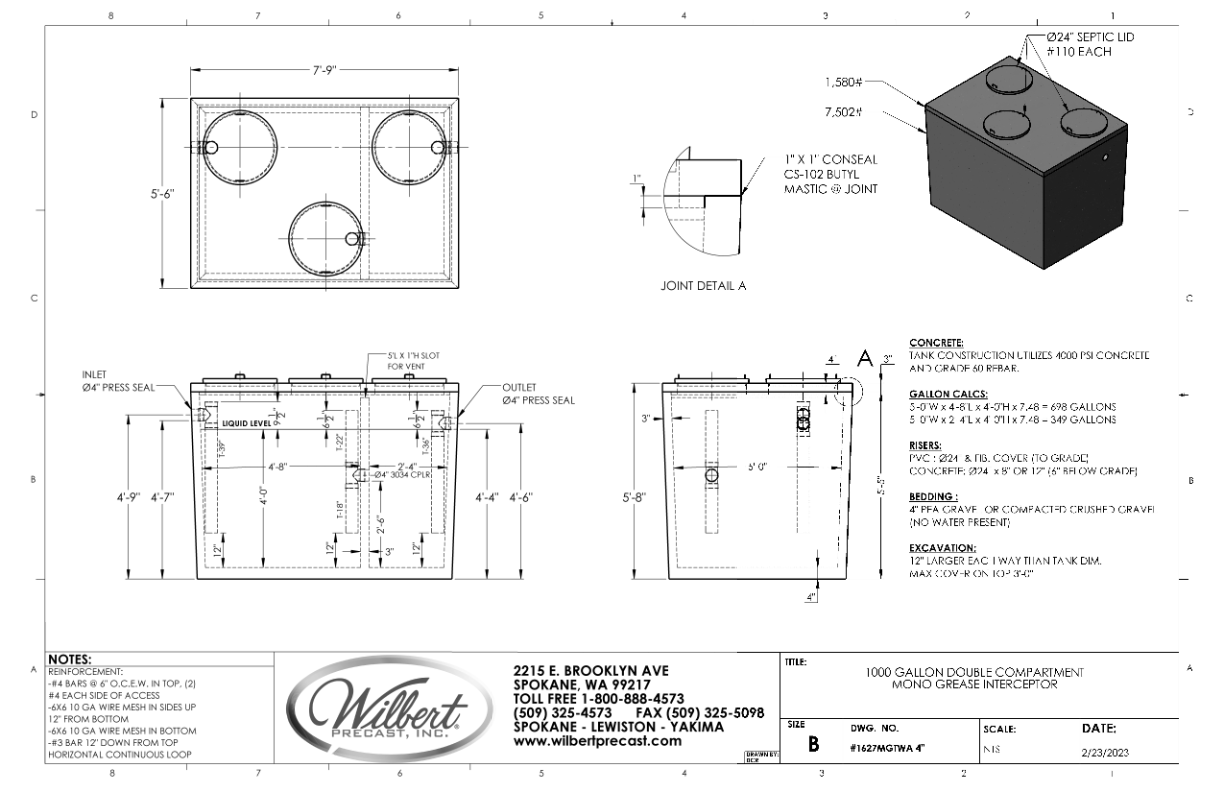

1000 Gallon Grease Interceptor Ø4″
Weight: 9082 lbs.
Product ID: #1627MGTWA 4"
Product ID Double: #1627MGTTBWA 4"
View PDF

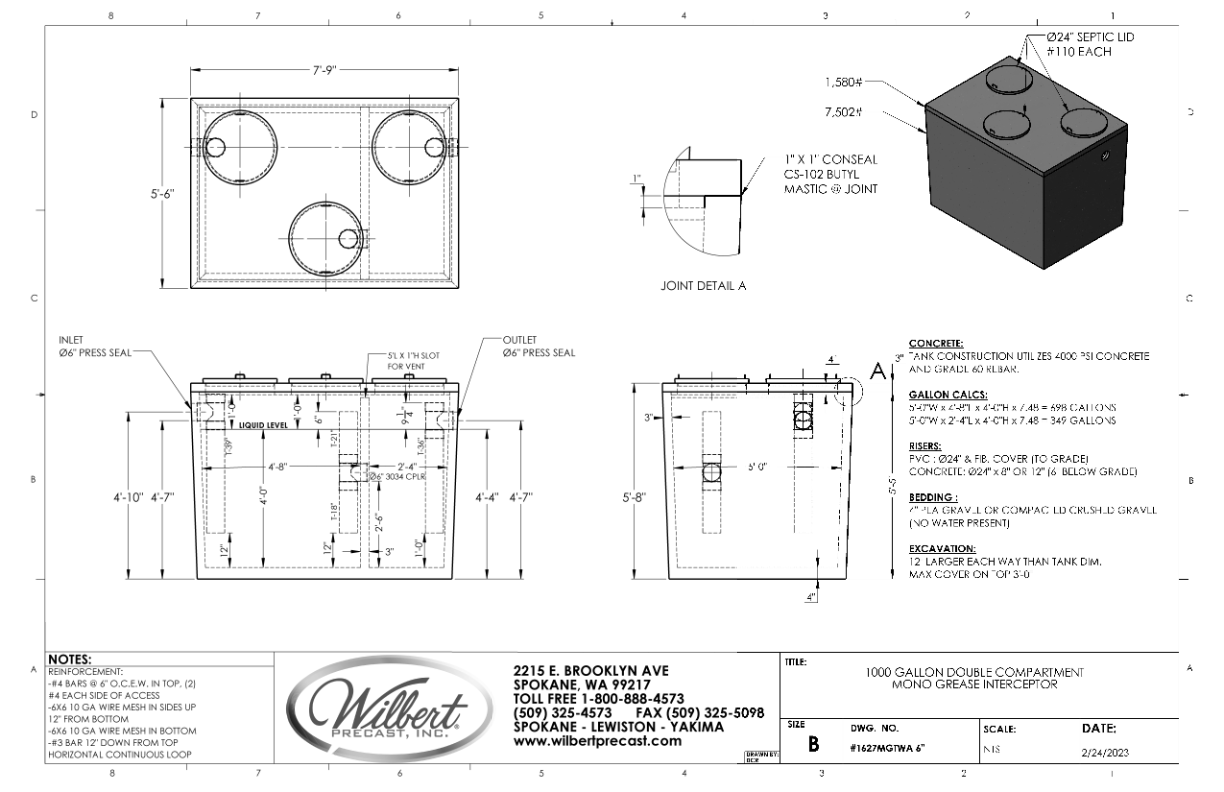

1000 Gallon Grease Interceptor Ø6″
Product ID: #1627MGTWA 6"
Product ID Double: #1627MGTTBWA 6"
View PDF
1000 Gallon Mono
Weight: 9,350 lbs.
Product ID: 1627MGT
Product ID Double: 1627MGTTB
View PDF

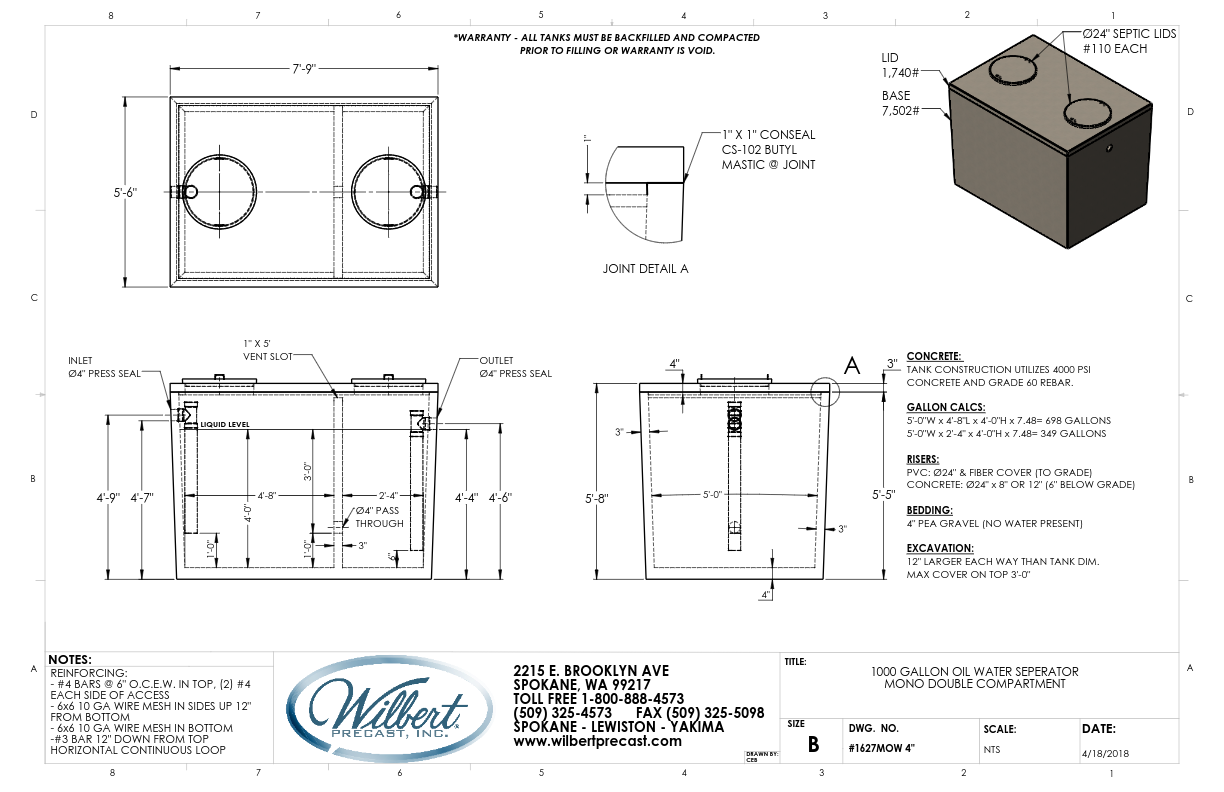

1000 Gallon Mono Oil/Water Separator
Weight: 9,350 lbs.
Product ID: 1627MOW
Product ID Double: 1627MOWTB
View PDF

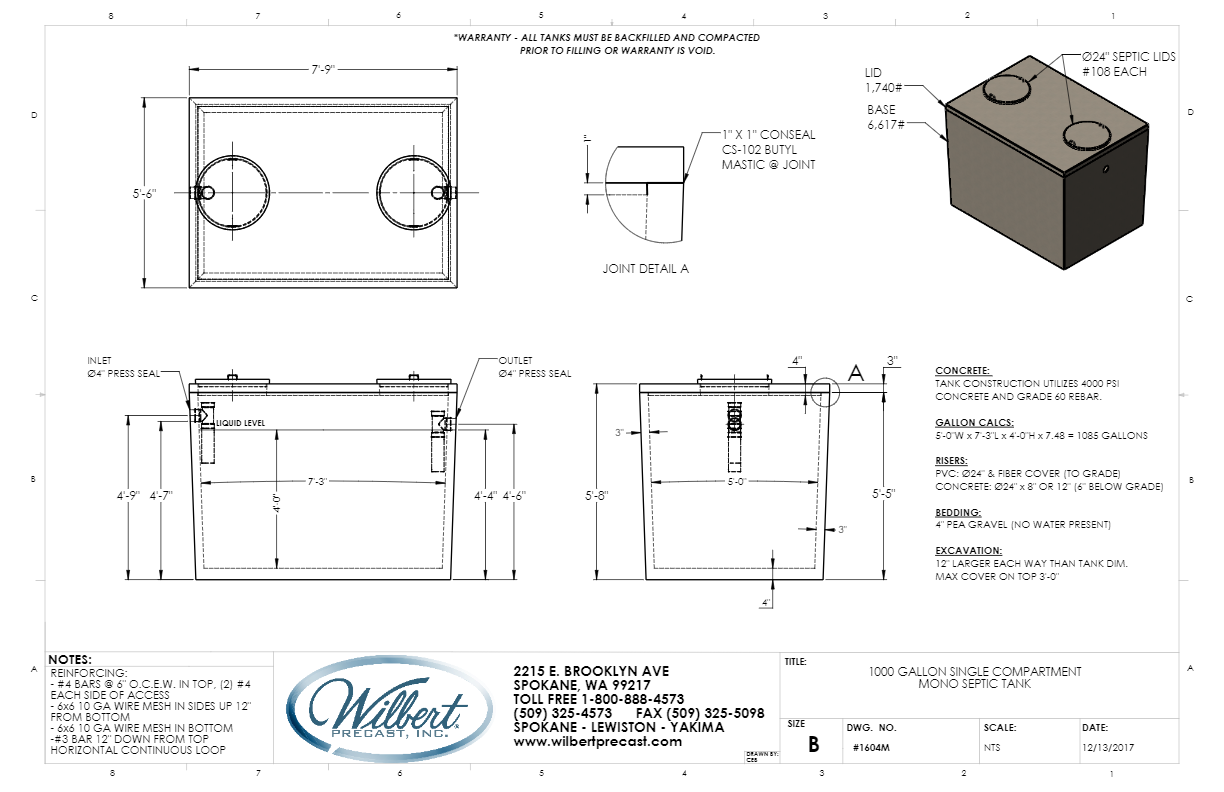

1000 Gallon Sgl Compartment Mono Septic Tank
Dimensions: 8'-2" X 5'-7" X 5'-5" Weight: 8537 lbs.
Product ID: 1604M
View PDF
1000 Gallon Sgl Compartment Mono Septic Tank – Heavy
Dimensions: 8'-2" X 5'-7" X 6'-2" Weight: 11758 lbs.
Product ID: 1604MTB
View PDF
1000 Gallon Sgl Compartment Septic Tank
Dimensions: 8'-0" X 5'-2" X 5'-5" Weight: 8056 lbs.
Product ID: 1604
View PDF
1000 Gallon Sgl Compartment Septic Tank – Heavy
Dimensions: 8'-0" X 5'-2" X 5'-11" Weight: 10786 lbs.
Product ID: 1604TB
View PDF
1000 Gallon Sgl Compartment w/ Side Knockouts
Dimensions: 8'-0" X 5'-2" X 5'-5" Weight: 8046 lbs.
Product ID: 1604ID
View PDF

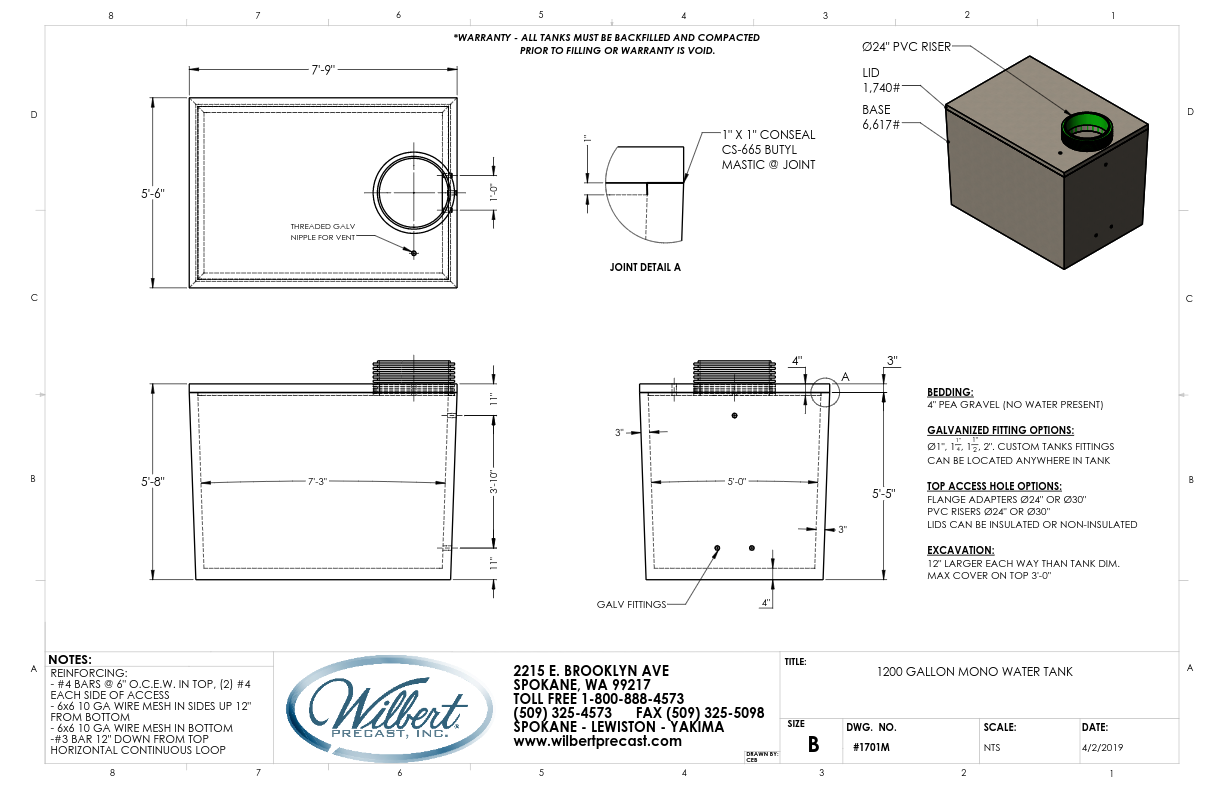

1200 Gallon
Dimensions: 5'6" x 7'9" x 5'8" Weight: 8,440 lbs.
Product ID: 1701
View PDF
Download

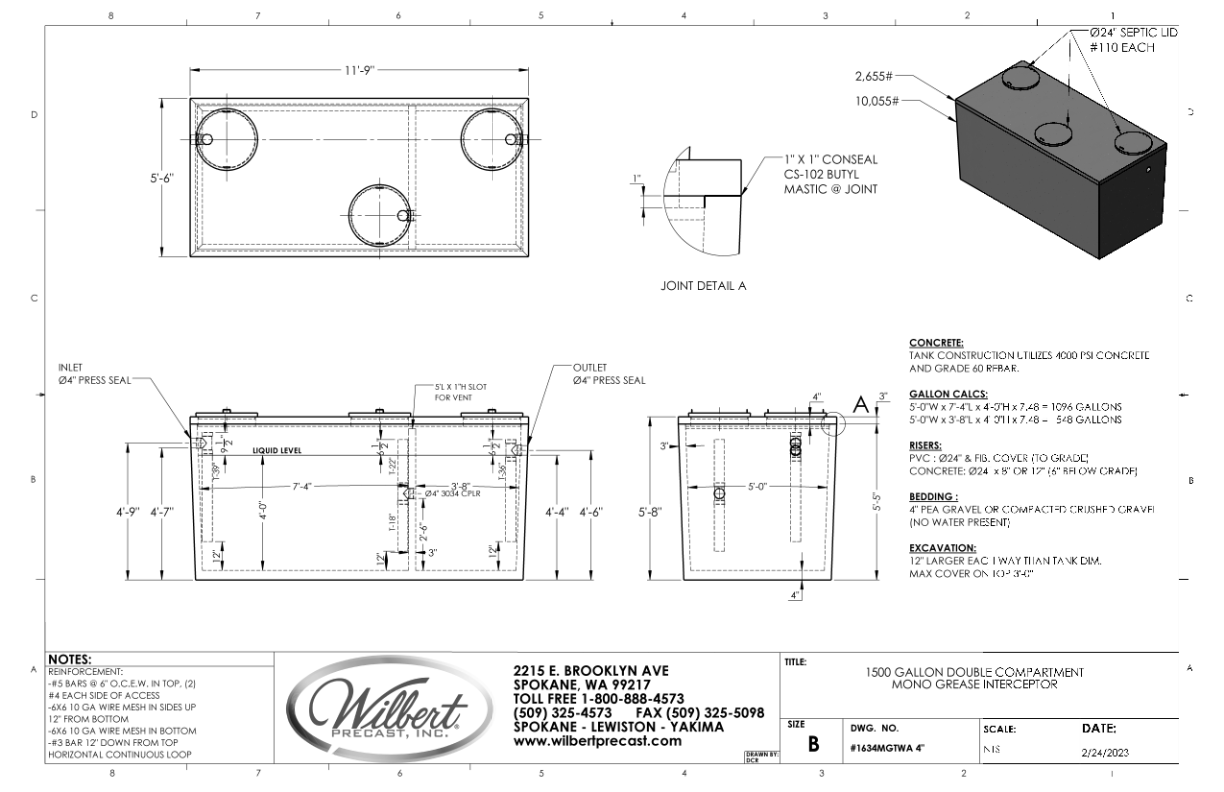

1500 Gallon Grease Interceptor Ø4″
Product ID: #1634MGTWA 4"
Product ID Double: #1634MGTTBWA 4"
View PDF
1500 Gallon Grease Interceptor Ø6″
Product ID: #1634MGTWA 6"
Product ID Double: #1634MGTTBWA 6"
View PDF
1500 Gallon Mono
Weight: 12,800 lbs.
Product ID: 1634MGT
Product ID Double: 1634MGTTB
View PDF
1500 Gallon Oil/Water Separator
Weight: 13,710 lbs.
Product ID: 1634OW
Product ID Double: 1634OWTB
View PDF

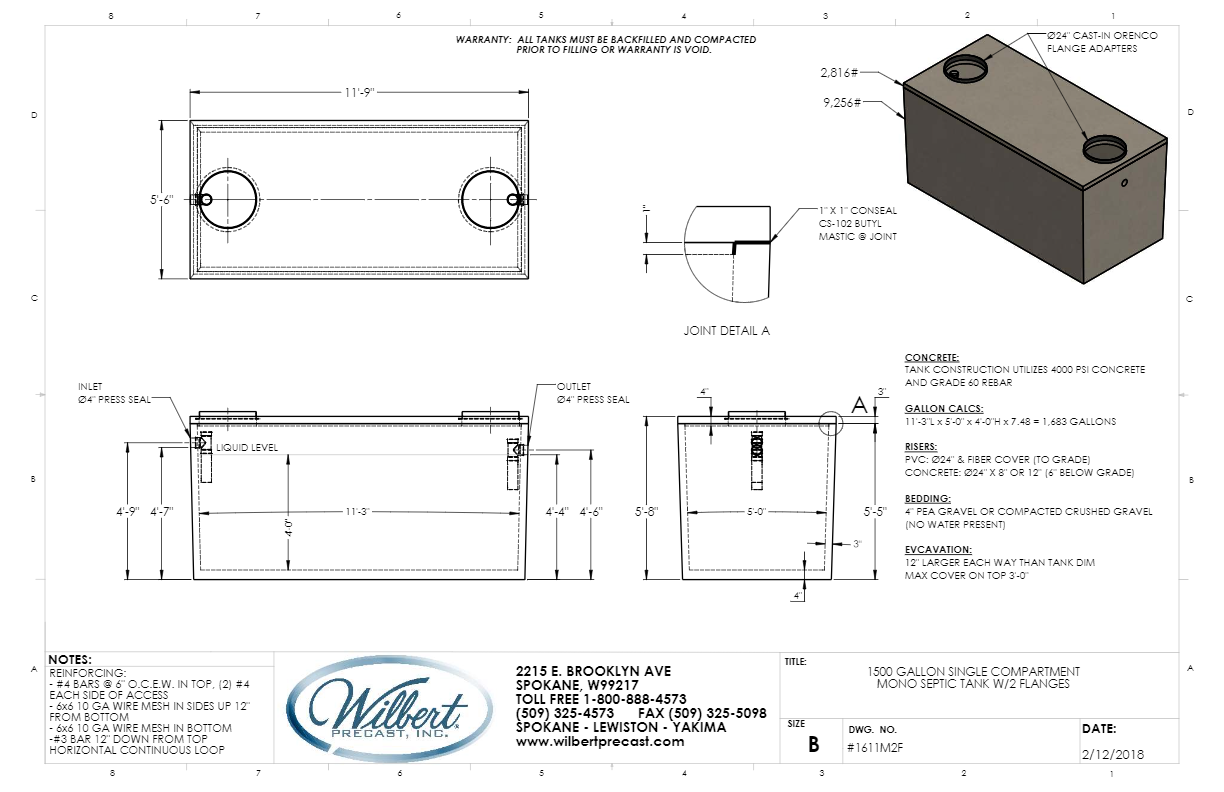

1500 Gallon Sgl Compartment Mono Septic Tank
Dimensions: 12'-1" X 5'-6" X 5'-8" Weight: 12269 lbs.
Product ID: 1611M2F
View PDF
1500 Gallon Sgl Compartment Septic Tank – Low Profile
Dimensions: 12'-0" X 6'-9" X 4'-5" Weight: 12569 lbs.
Product ID: #1611
View PDF

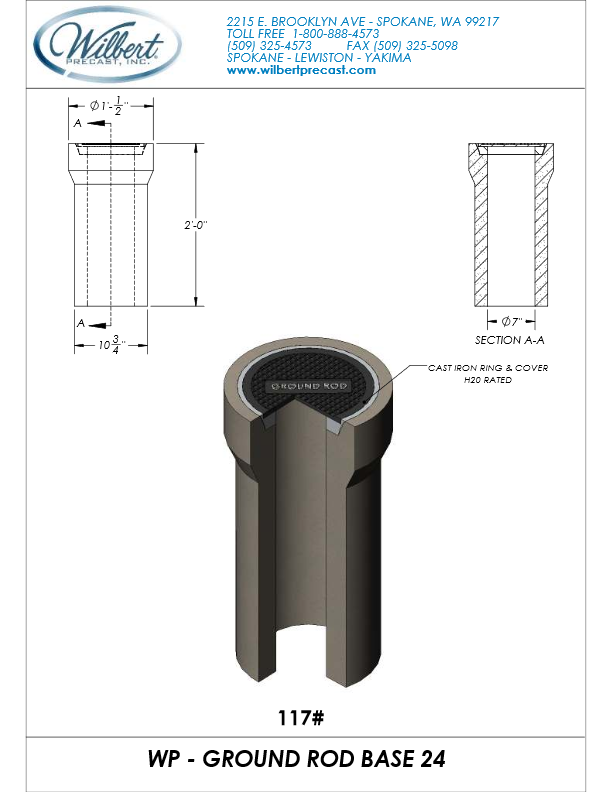

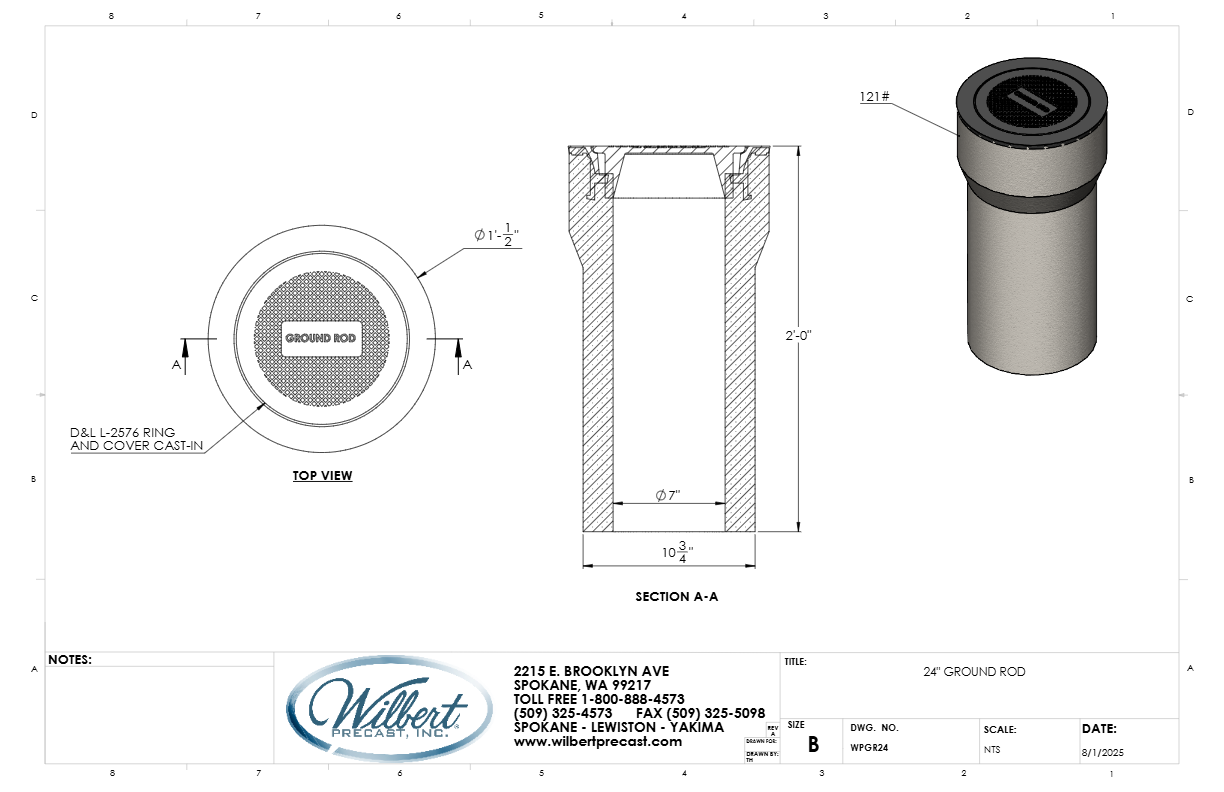

2′-0″ Ground Rod
Dimensions: Ø1'-½" X 2'-0" Weight: 121 lbs.
Product ID: WPGR24
View PDF

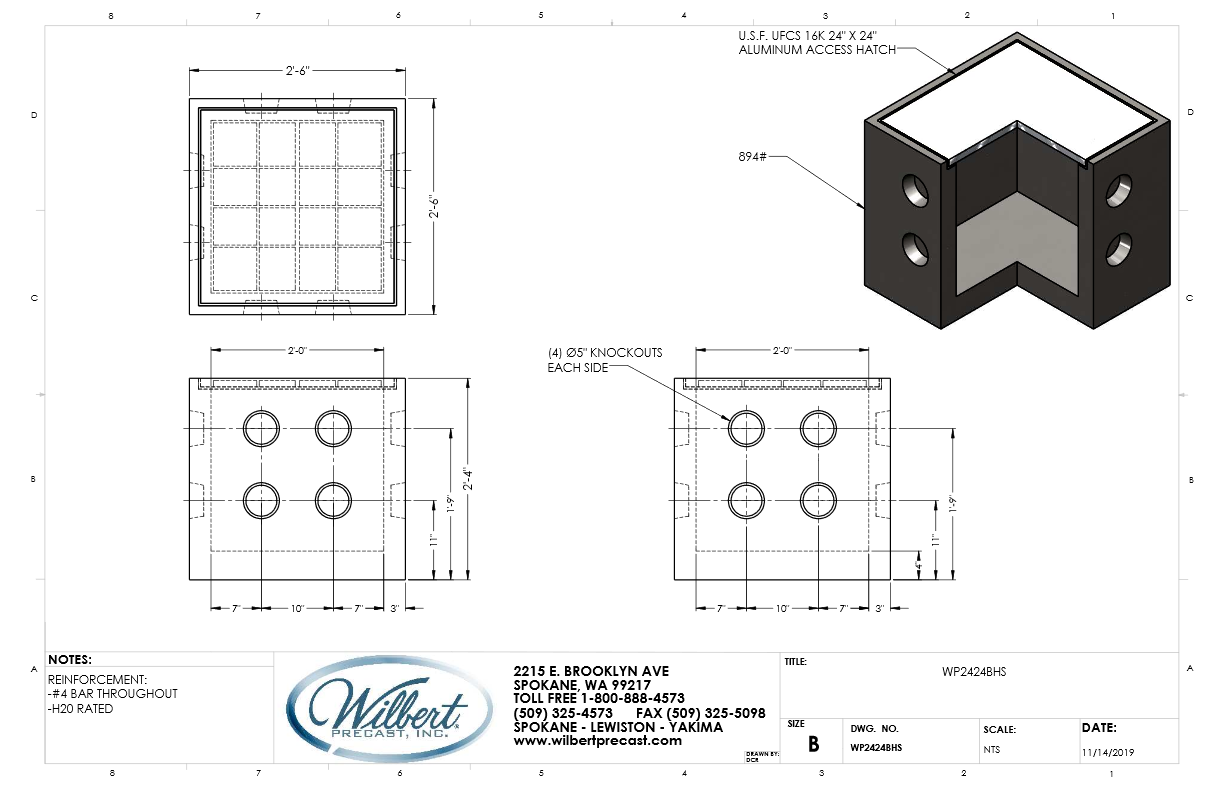

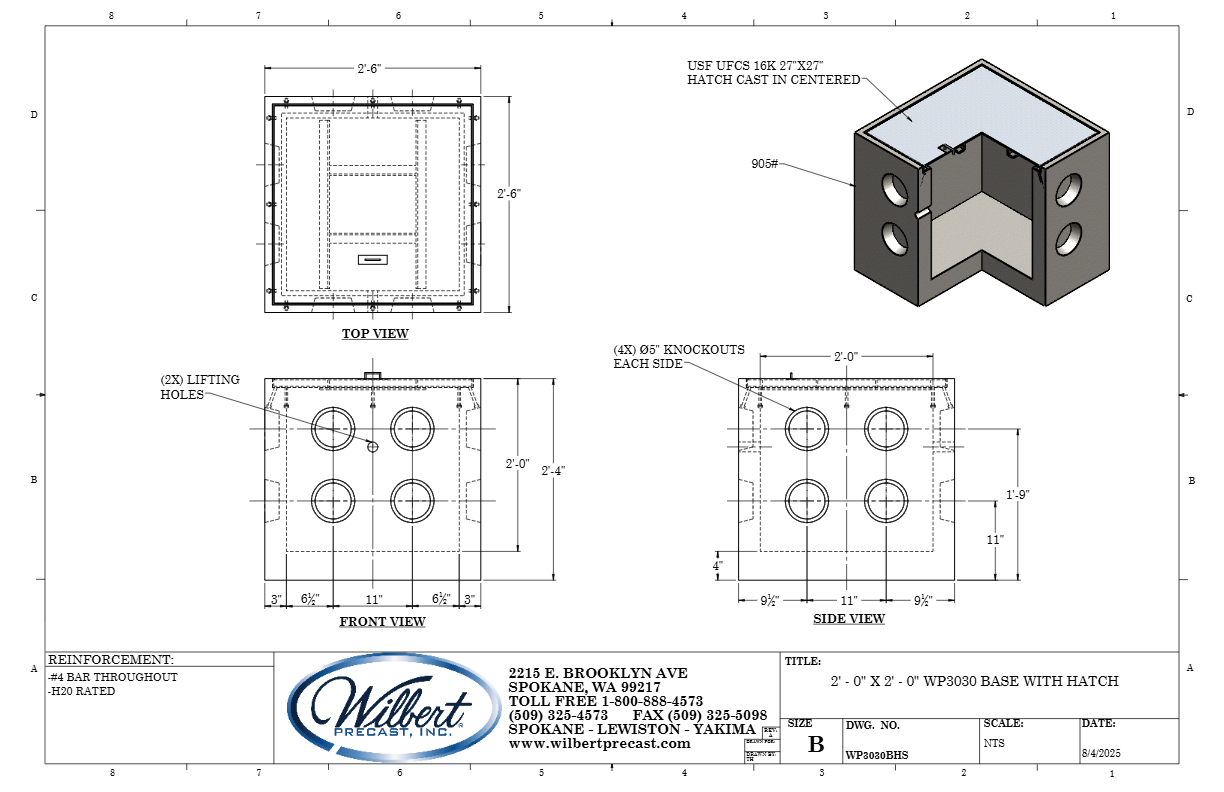

2′-0″ x 2′-0″ Vault Base with Hatch
Dimensions: 2'-6" X 2'-6" X 2'-4" Weight: 905 lbs.
Product ID: WP3030BHS
View PDF

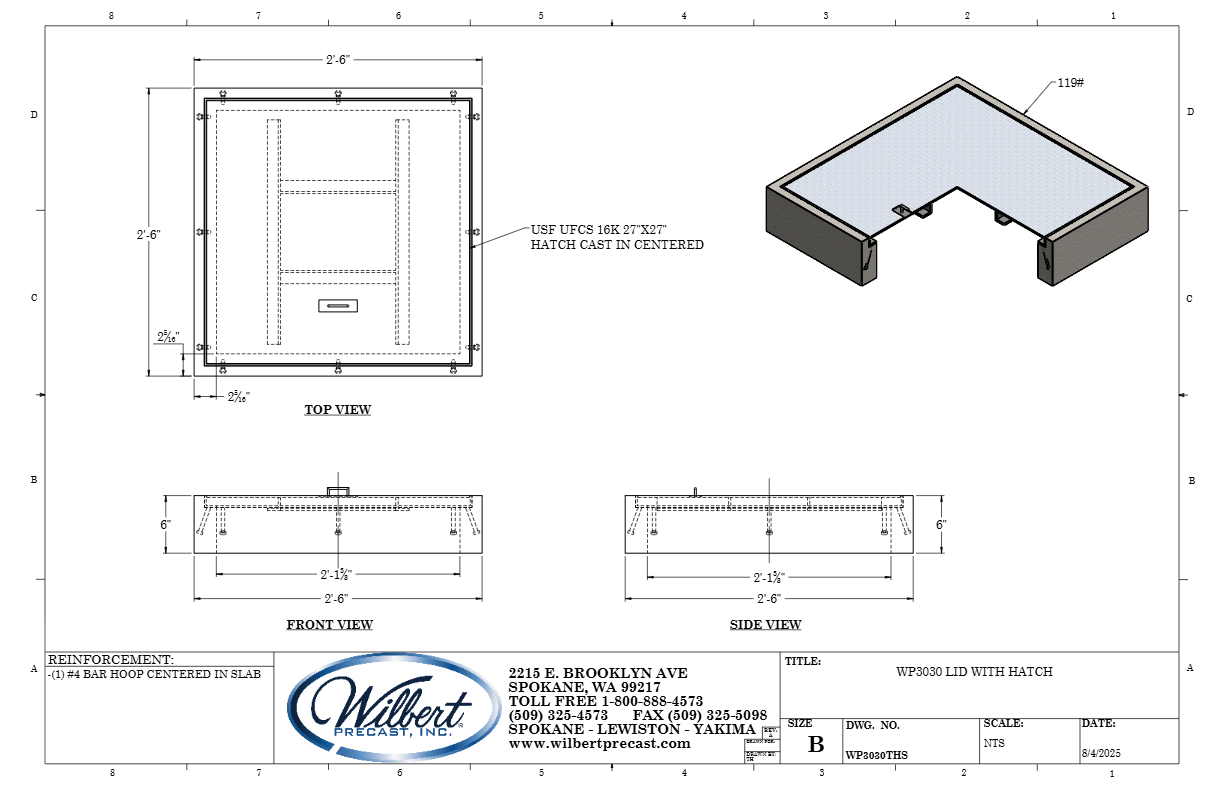

2′-0″ X 2′-0″ Vault Lid
Dimensions: 2'-6" X 2'-6" X 6" Weight: 119 lbs.
Product ID: WP3030THS
View PDF

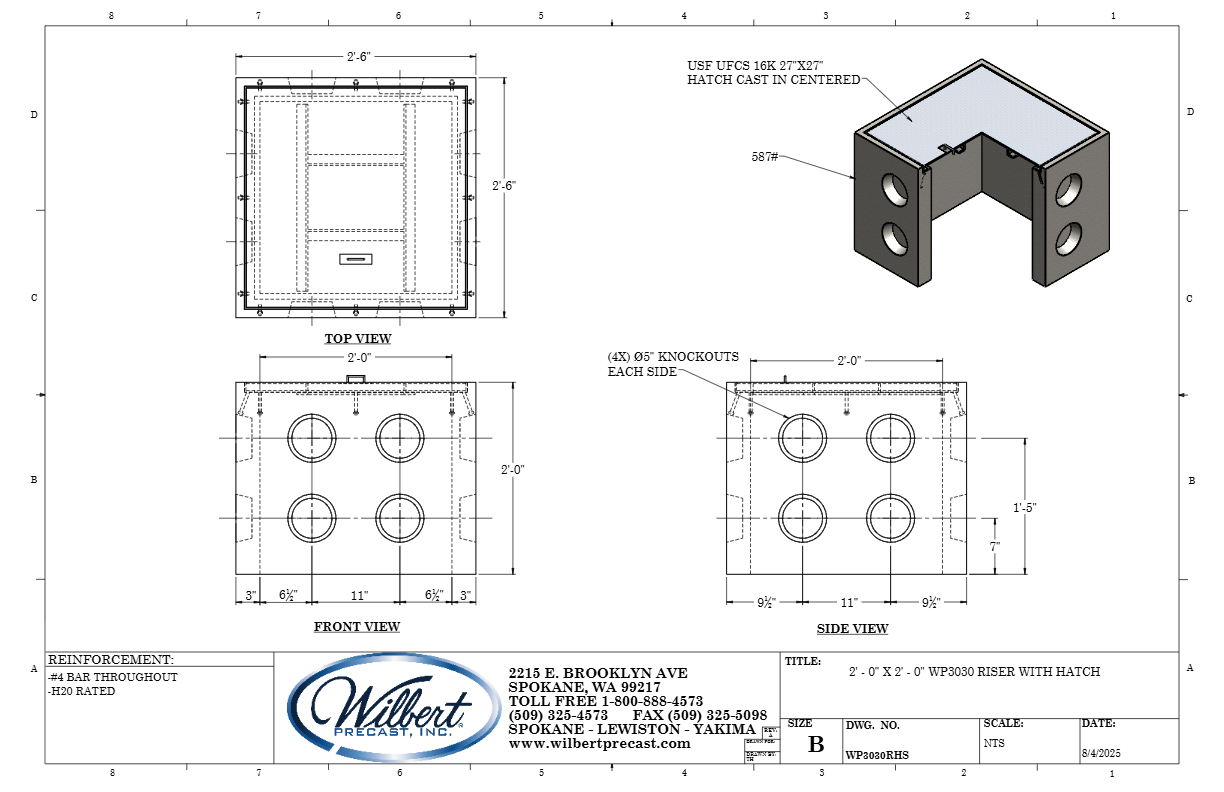

2′-0″ X 2′-0″ Vault Riser with Hatch
Dimensions: 2'-6" X 2'-6" X 2'-0" Weight: 587 lbs.
Product ID: WP3030RHS
View PDF

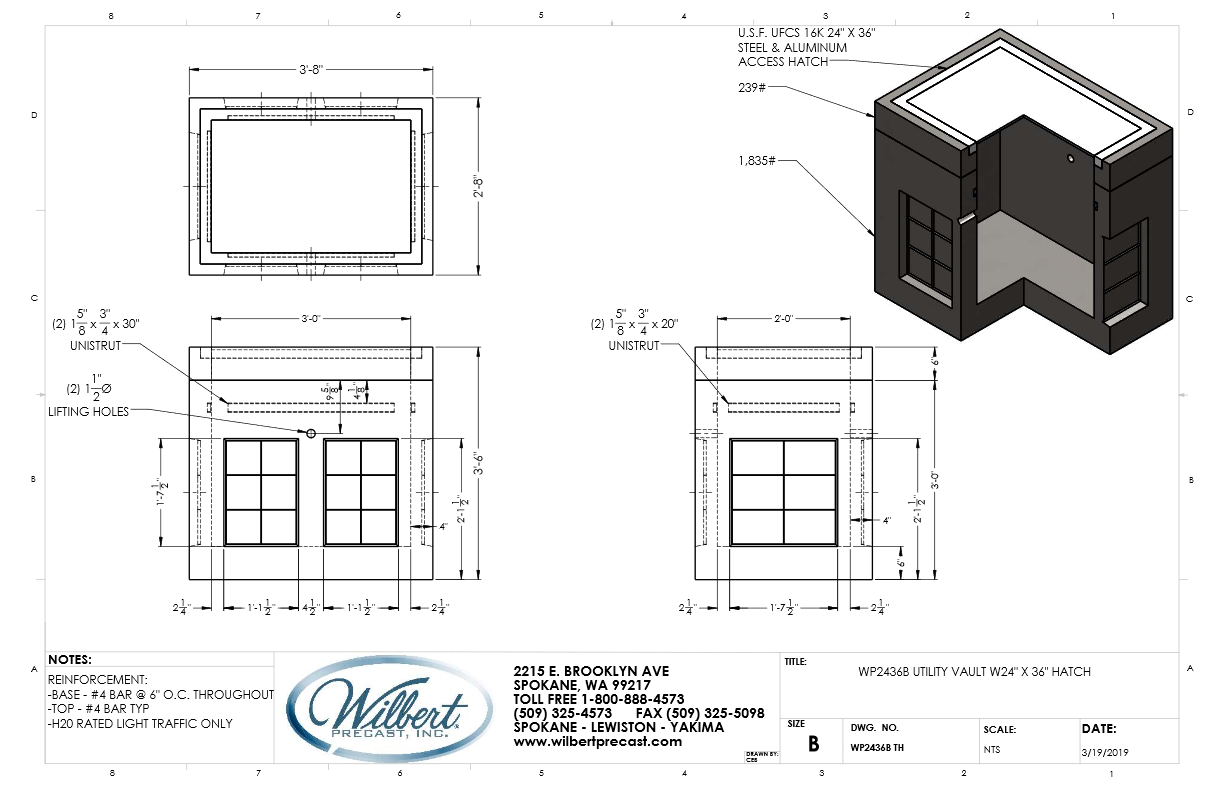

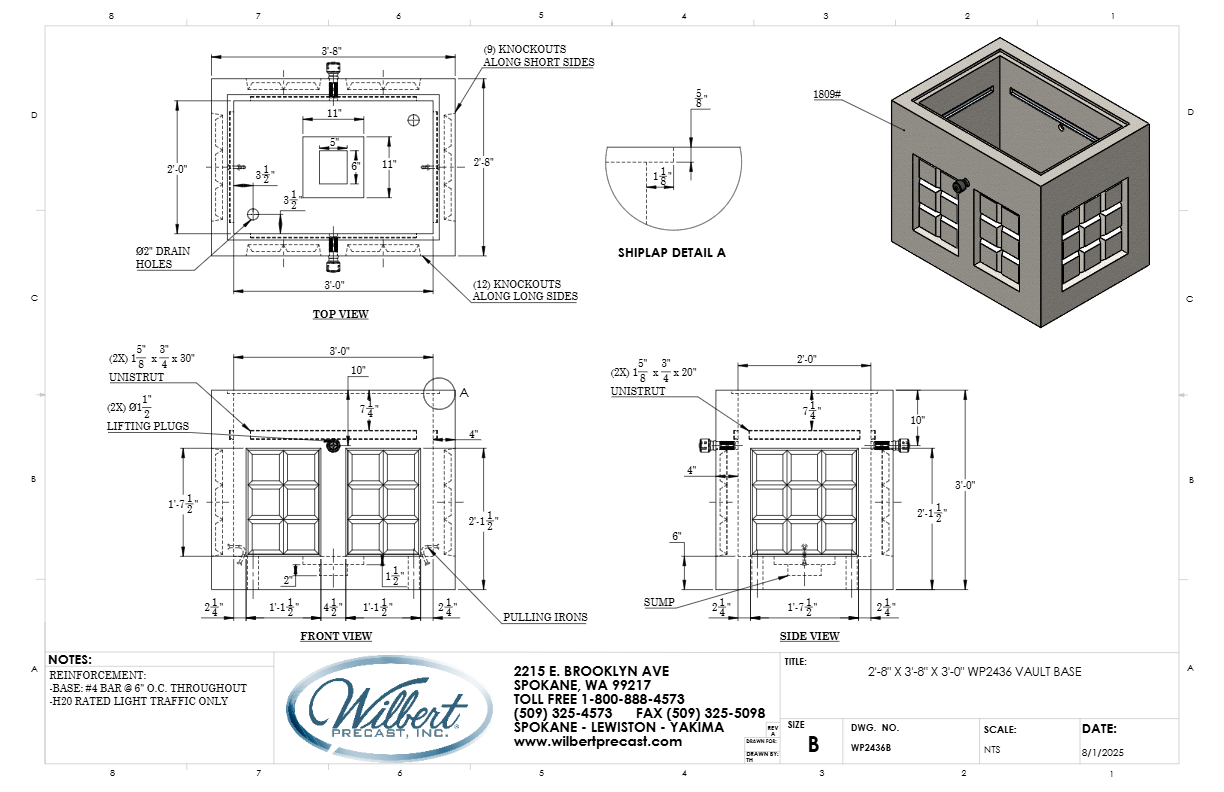

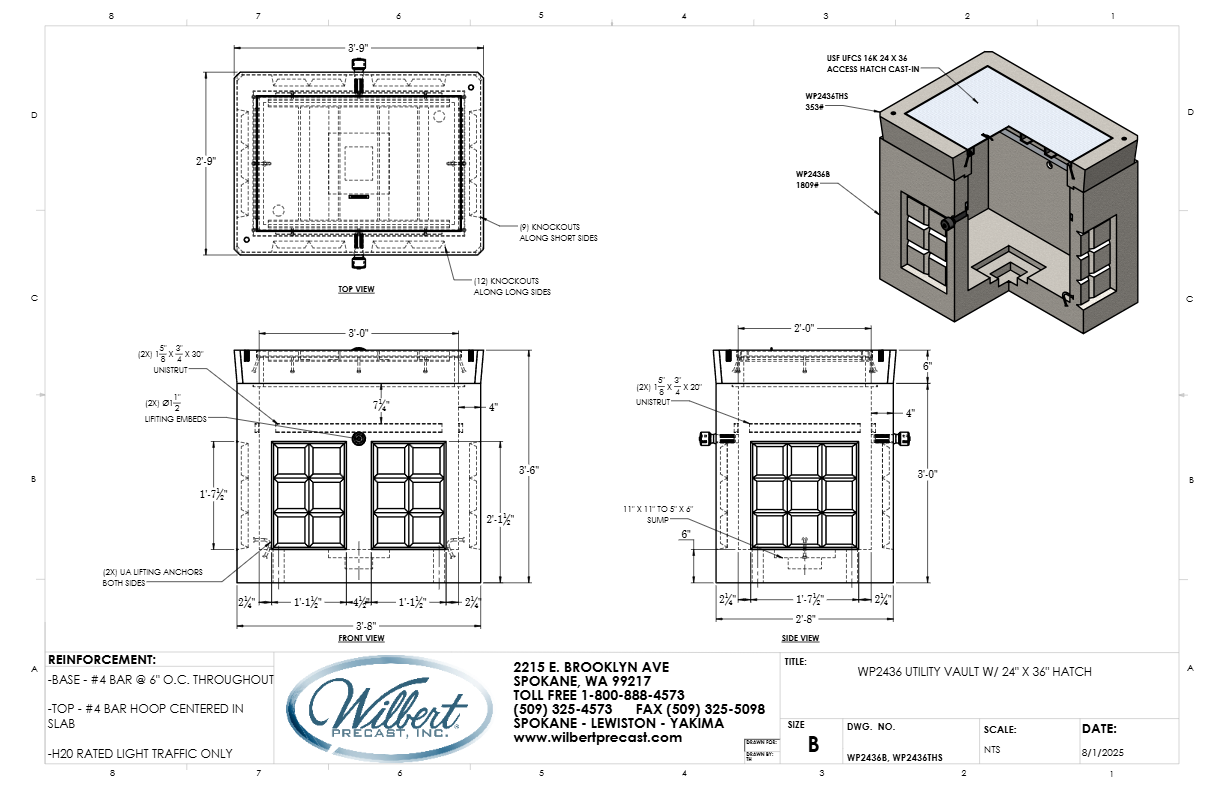

2′-0″ X 3′-0″ WP2436 Vault Base
Dimensions: 2'-8" X 3'-8" X 2'-0" Weight: 1809 lbs.
Product ID: WP2436B
View PDF

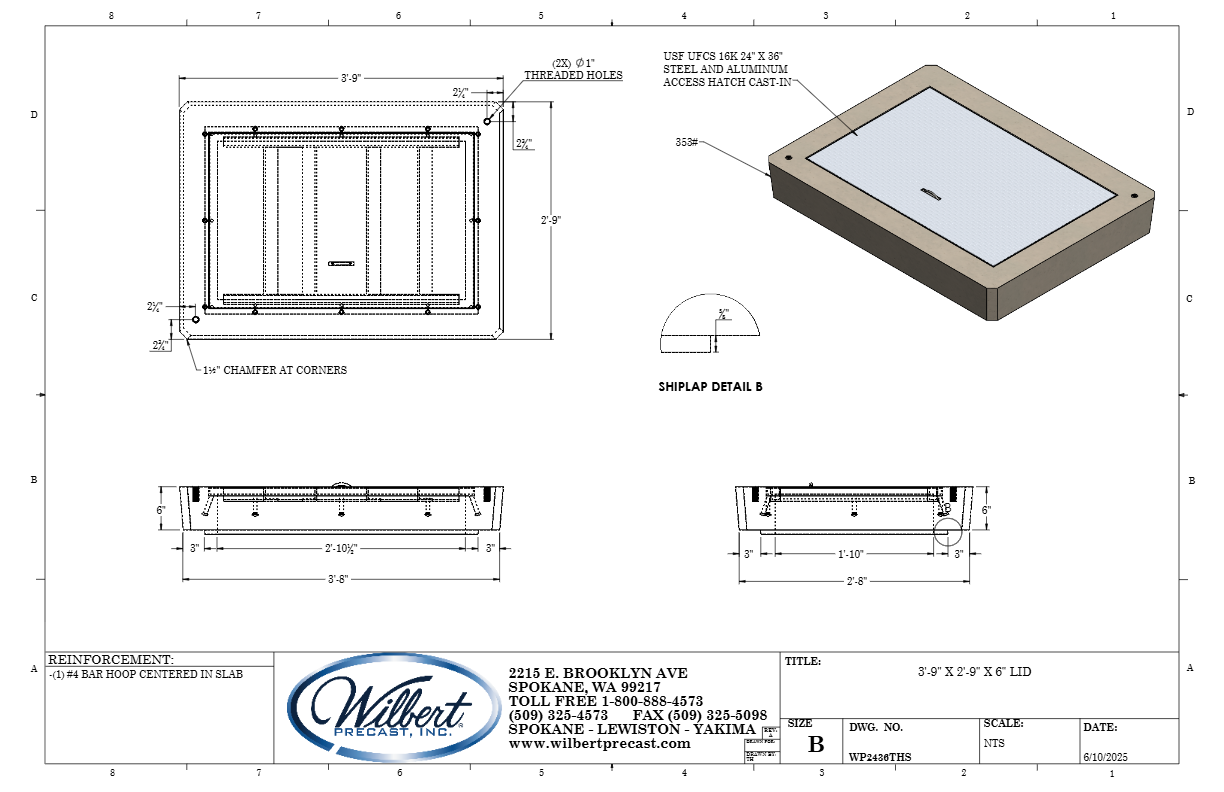

2′-0″ X 3′-0″ WP2436 Vault Lid
Dimensions: 3'-9" X 2'-9" X 6⅝" Weight: 353 lbs.
Product ID: WP2436THS
View PDF
2′-0″ X 3′-0″ WP2436 Vault Series
Dimensions: 2'-0" X 3'-0" X 3'-0" Weight: 2162 lbs.
Product ID: WP2436
View PDF

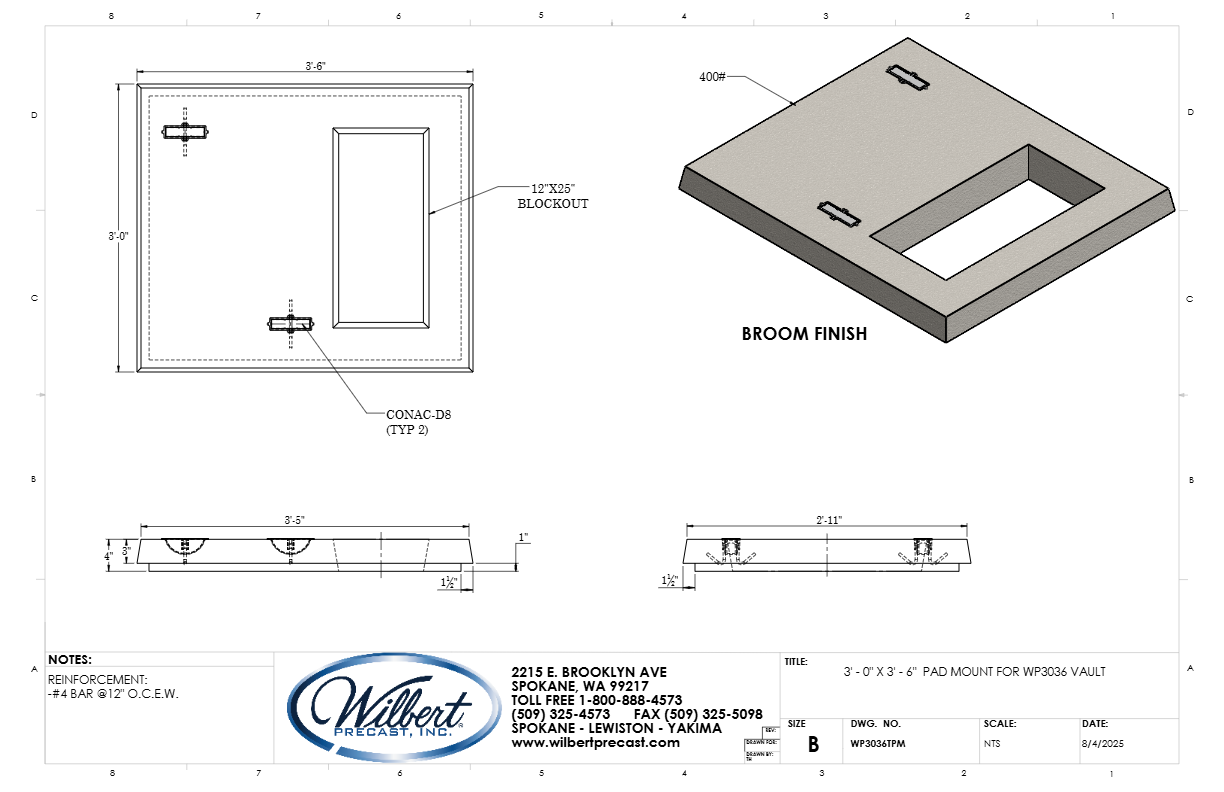

2′-6″ X 3′-0″ Pad Mount
Dimensions: 3'-6 X 3'-0" X 7" Weight: 400 lbs.
Product ID: WP3036PM3
View PDF

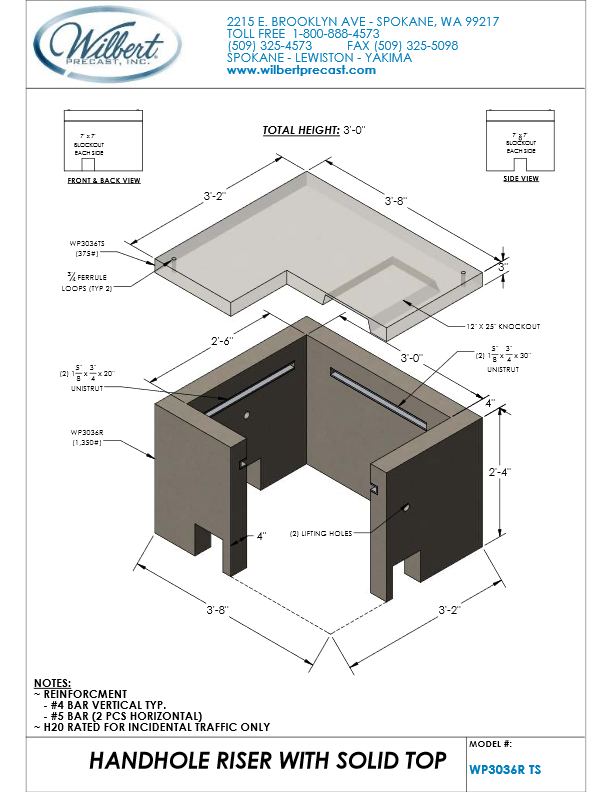

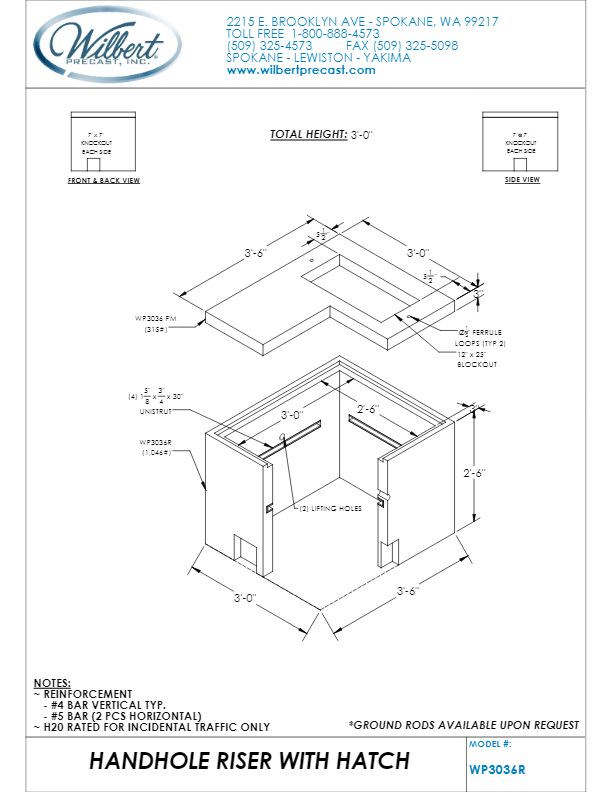

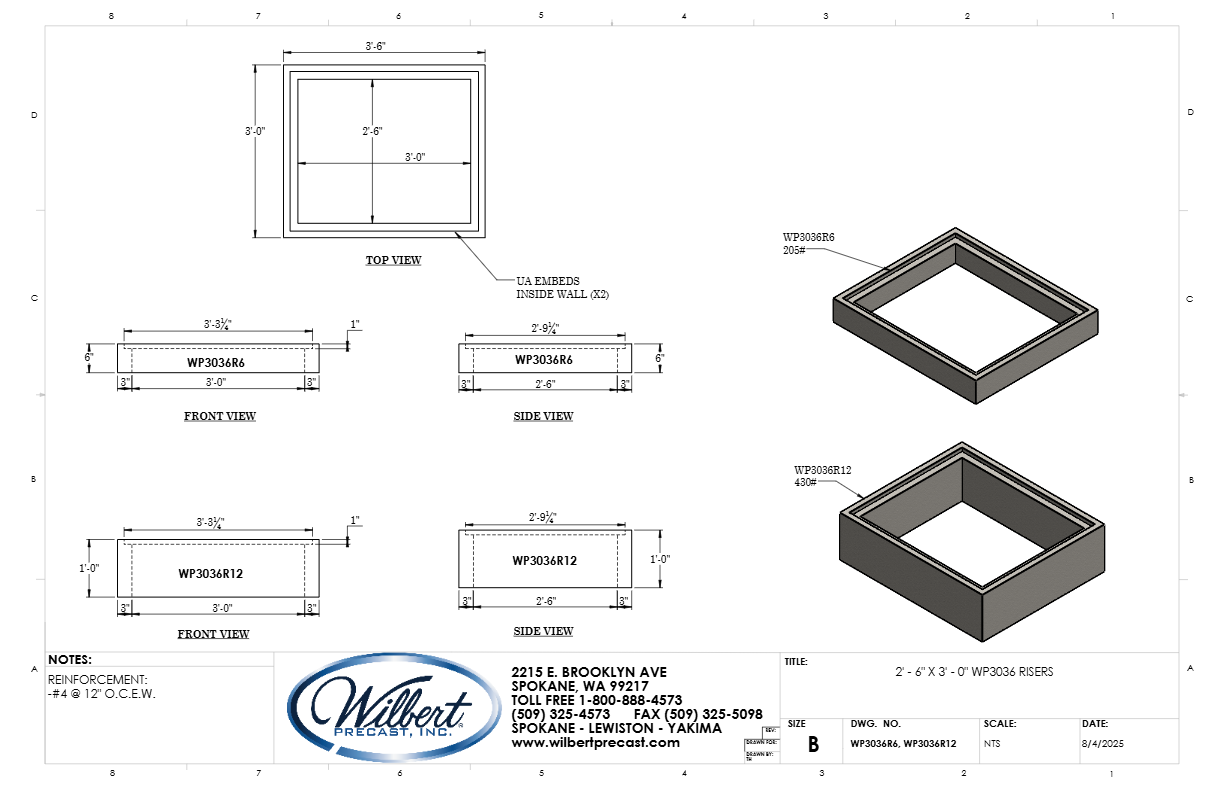

2′-6″ X 3′-0″ Risers
Dimensions: 3'-6" X 3'-0" Product ID: WP3036R6 , WP3036R12
View PDF

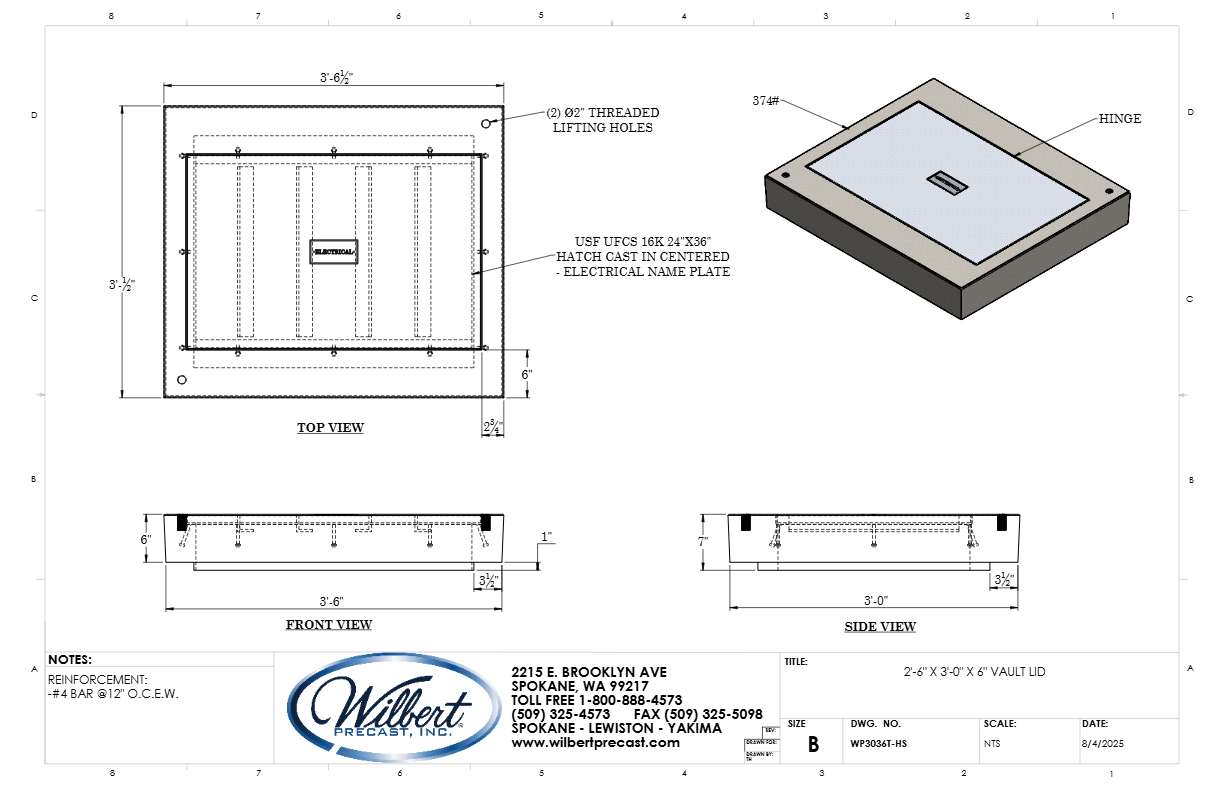

2′-6″ X 3′-0″ Vault Lid
Dimensions: 3'-6" X 3'-0" X 7" Weight: 361 lbs.
Product ID: WP3036T-HS
View PDF

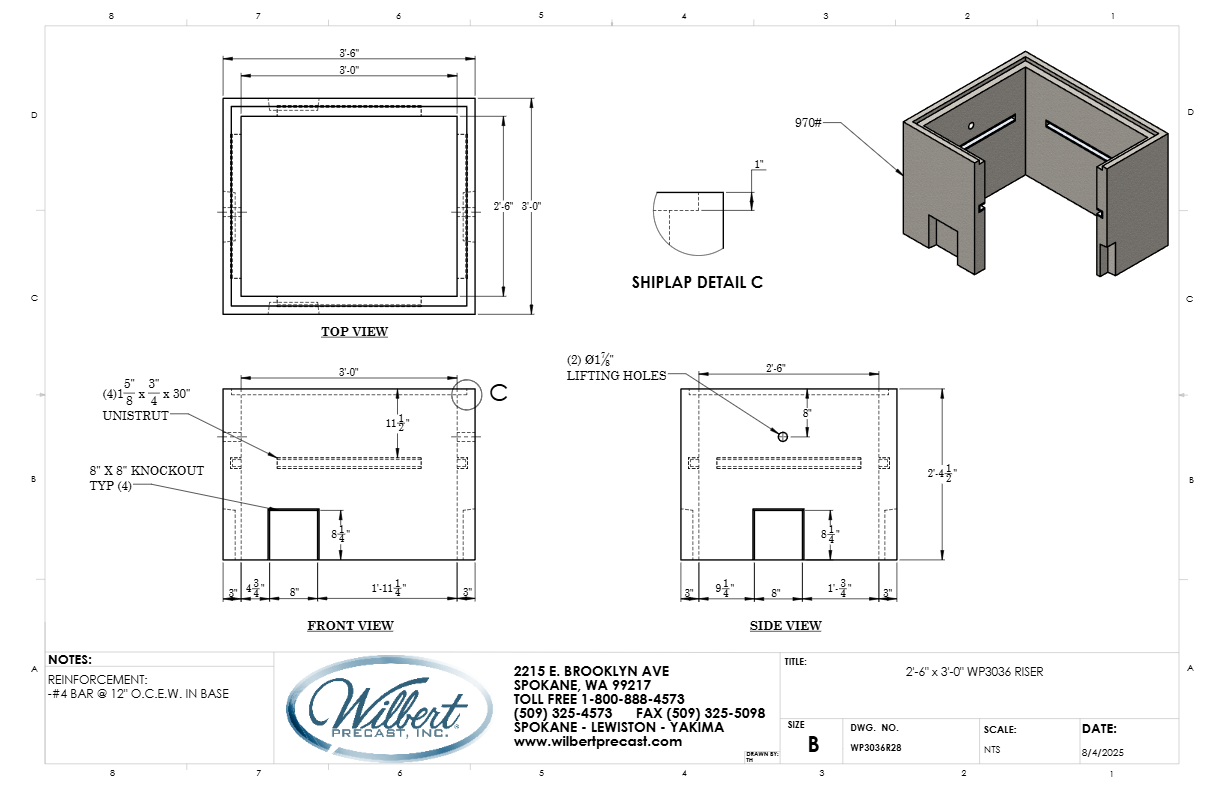

2′-6″ X 3′-0″ Vault Riser
Dimensions: 3'-0" X 3'-6" X 2'-4½" Weight: 970 lbs.
Product ID: WP3036R28
View PDF

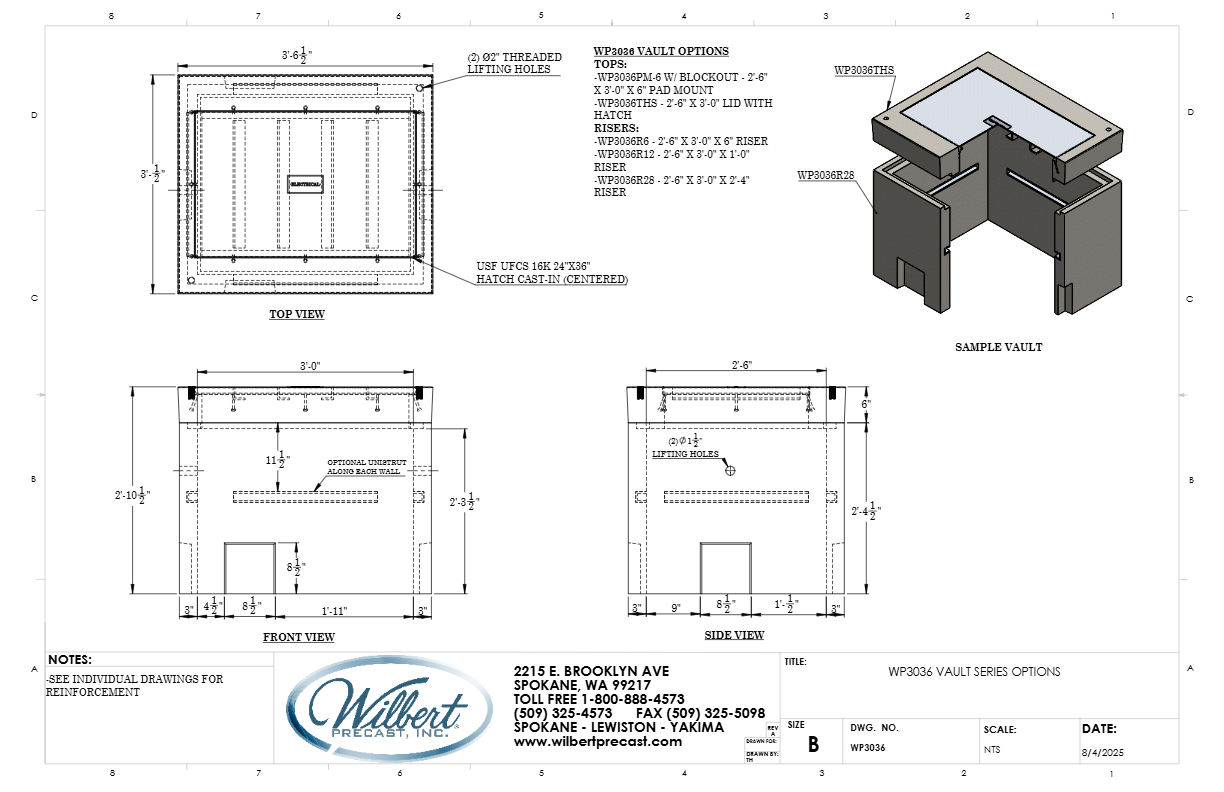

2′-6″ X 3′-0″ WP3036 Vault Series
Dimensions: See Individual Drawings Product ID: WP3036
View PDF

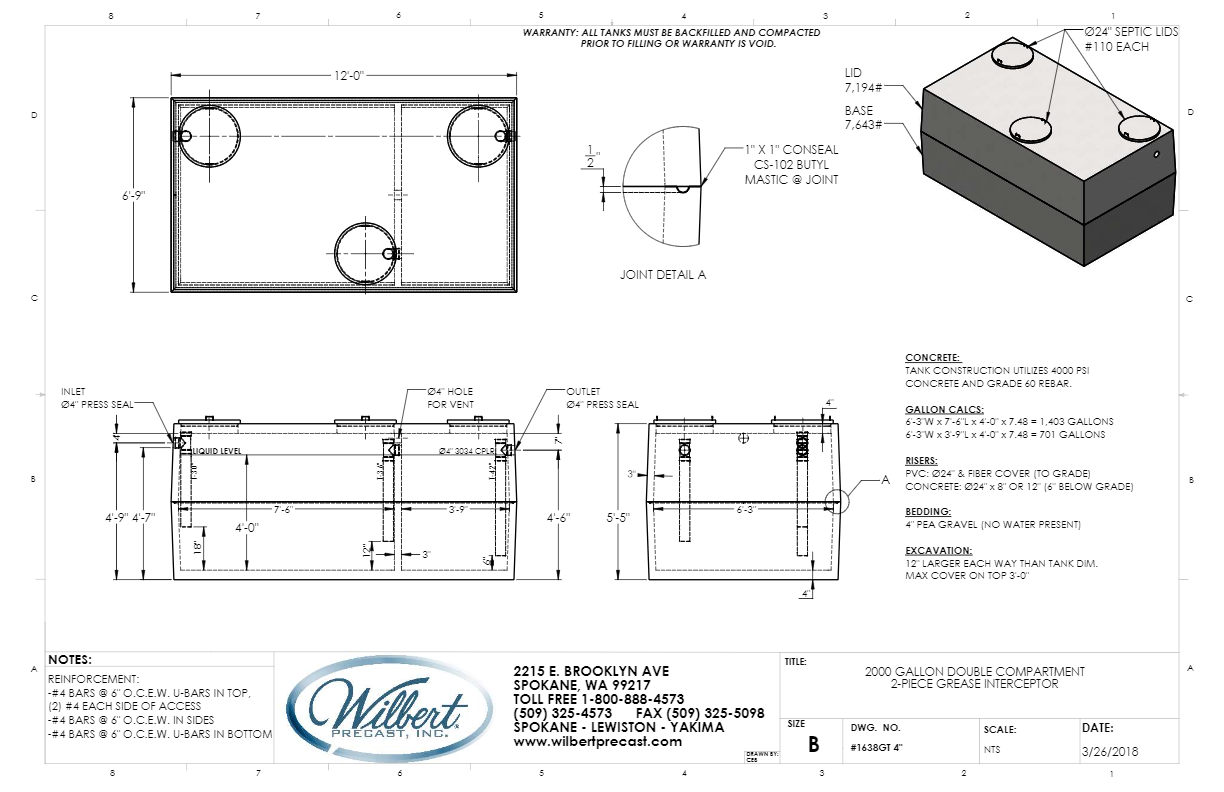

2000 Gallon
Weight: 15,280 lbs.
Product ID: 1638GT
Product ID Double: 1638GTTB
View PDF

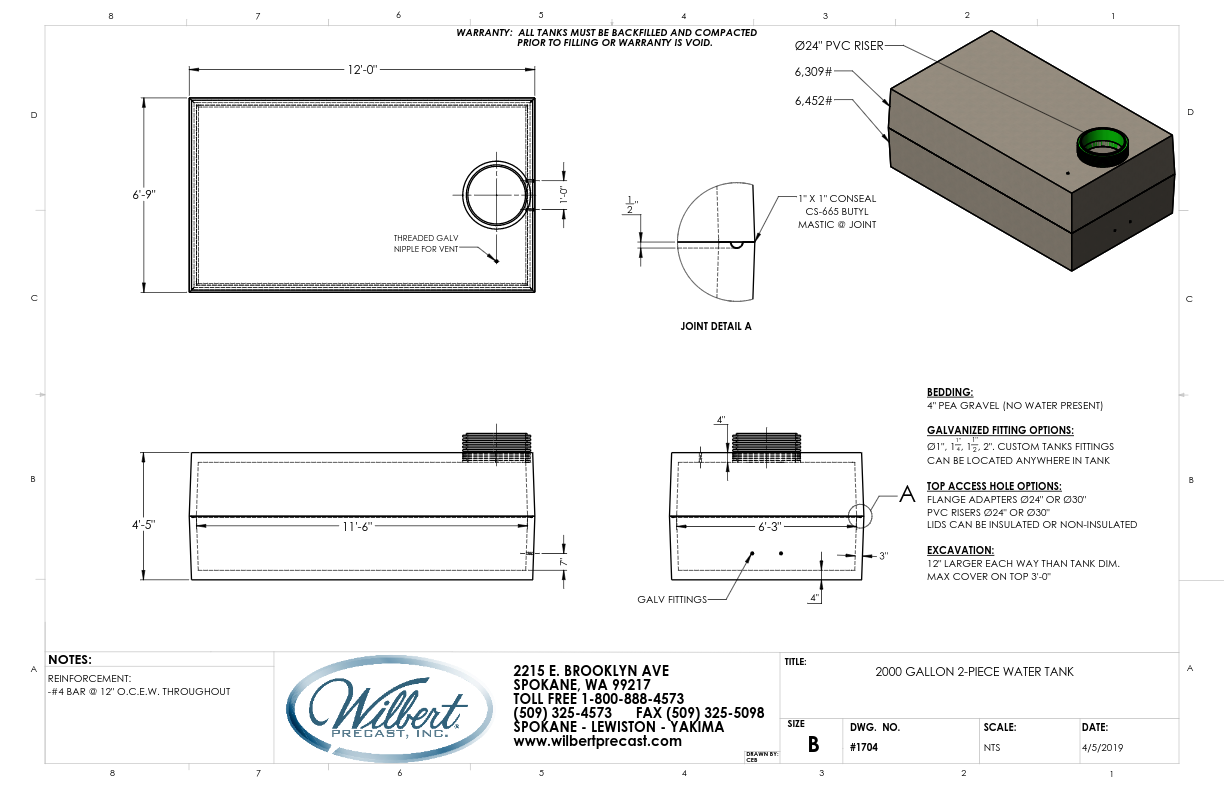

2000 Gallon 2 Piece Water Tank
Dimensions: 12'-0" X 6'-9" X 4'-5" Weight: 12731 lbs.
Product ID: 1704
View PDF
Download
2000 Gallon Dbl Compartment Septic Tank
Dimensions: 12'-0" X 6'-9" X 5'-5" Weight: 15281 lbs.
Product ID: 1638
View PDF
2000 Gallon Dbl Compartment Septic Tank – Heavy
Dimensions: 12'-0" X 6'-9" X 5'-11" Weight: 20656 lbs.
Product ID: 1638TB
View PDF
2000 Gallon Oil/Water Separator
Weight: 15,280 lbs.
Product ID: 1638OW
Product ID Double: 1638OWTB
View PDF

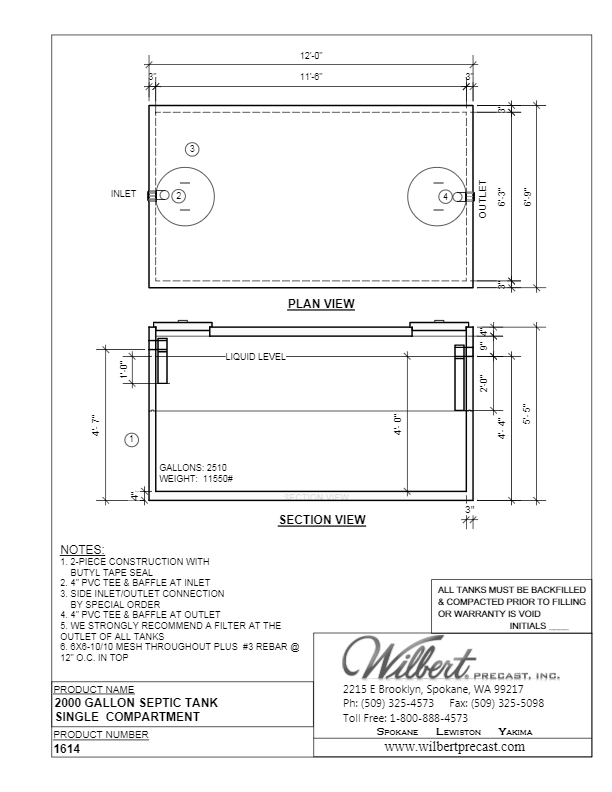

2000 Gallon Sgl Compartment Septic Tank
Dimensions: 12'-0" X 6'-9" X 5'-5" Weight: 13917 lbs.
Product ID: 1614
View PDF

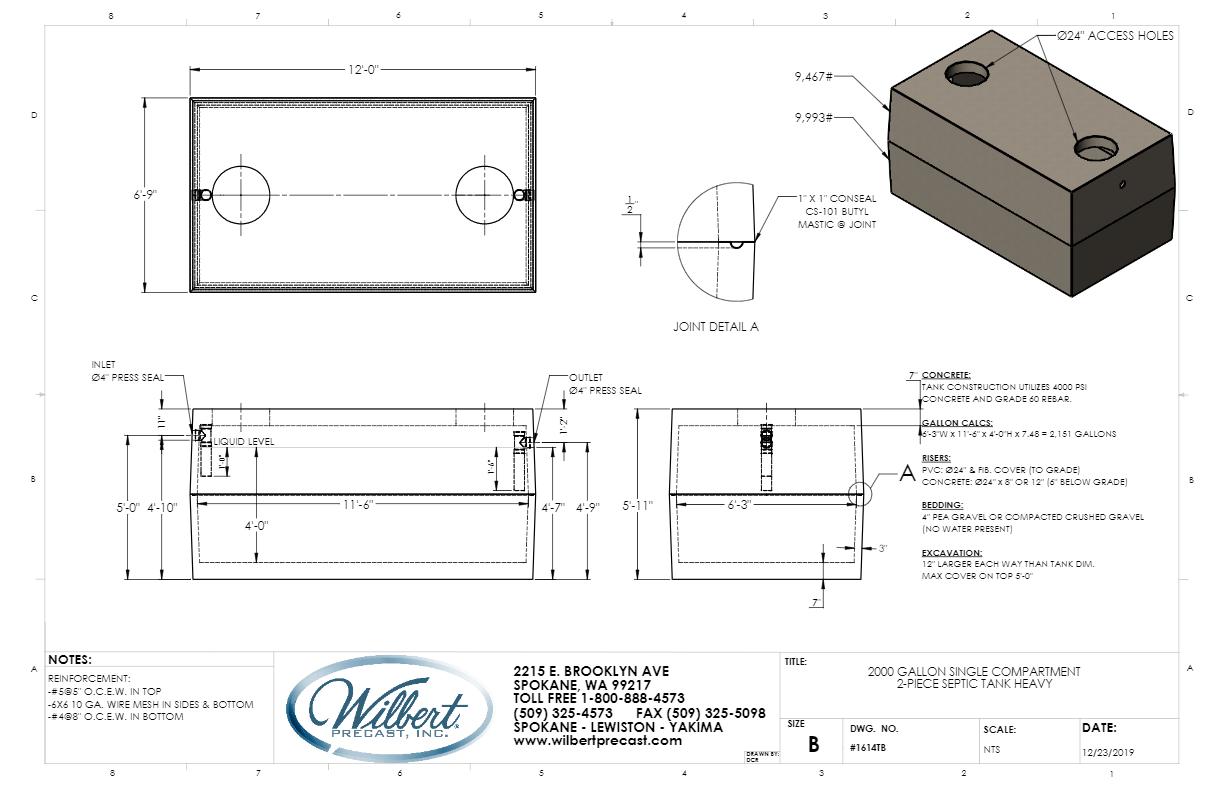

2000 Gallon Sgl Compartment Septic Tank – Heavy
Dimensions: 12'-0" X 6'-9" X 5'-11" Weight: 19562 lbs.
Product ID: 1614TB
Product ID Double: 1638TB
View PDF

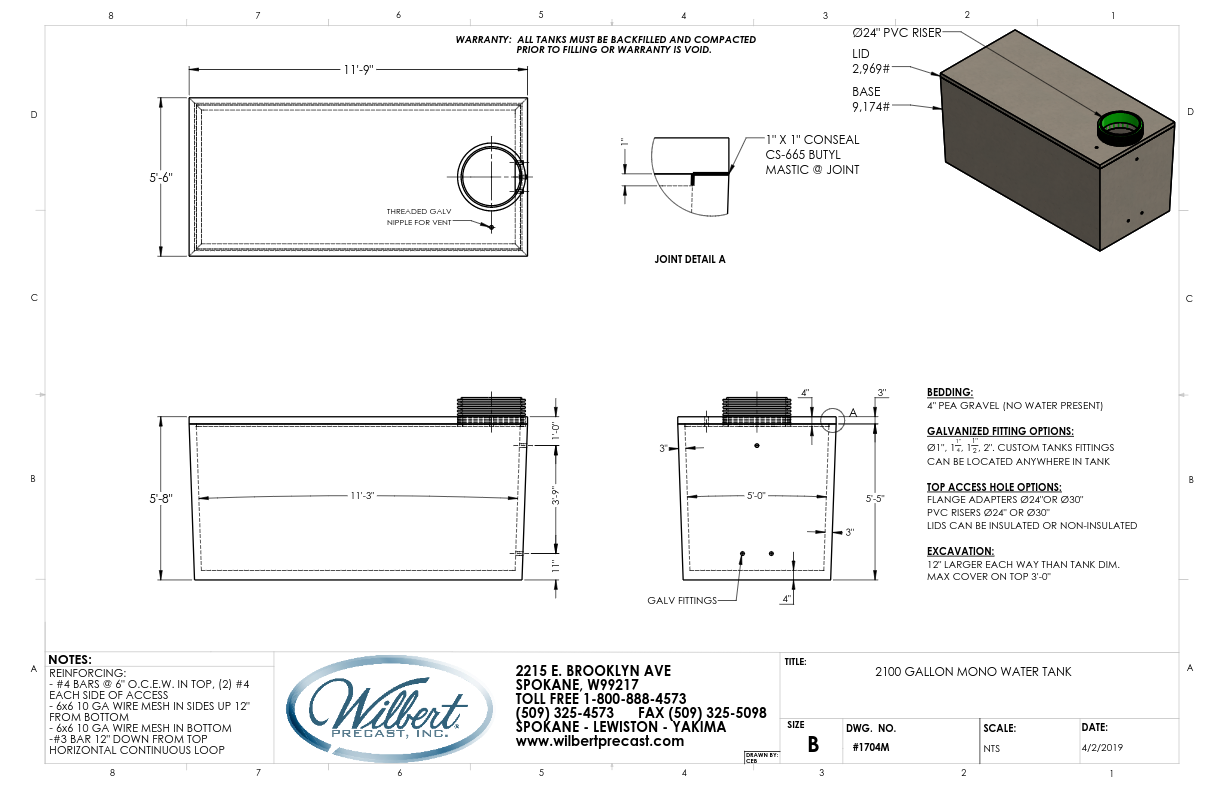

2100 Gallon
Dimensions: 5'6" x 11'9" x 5'8" Weight: 12,760 lbs.
Product ID: 1704M
View PDF
Download

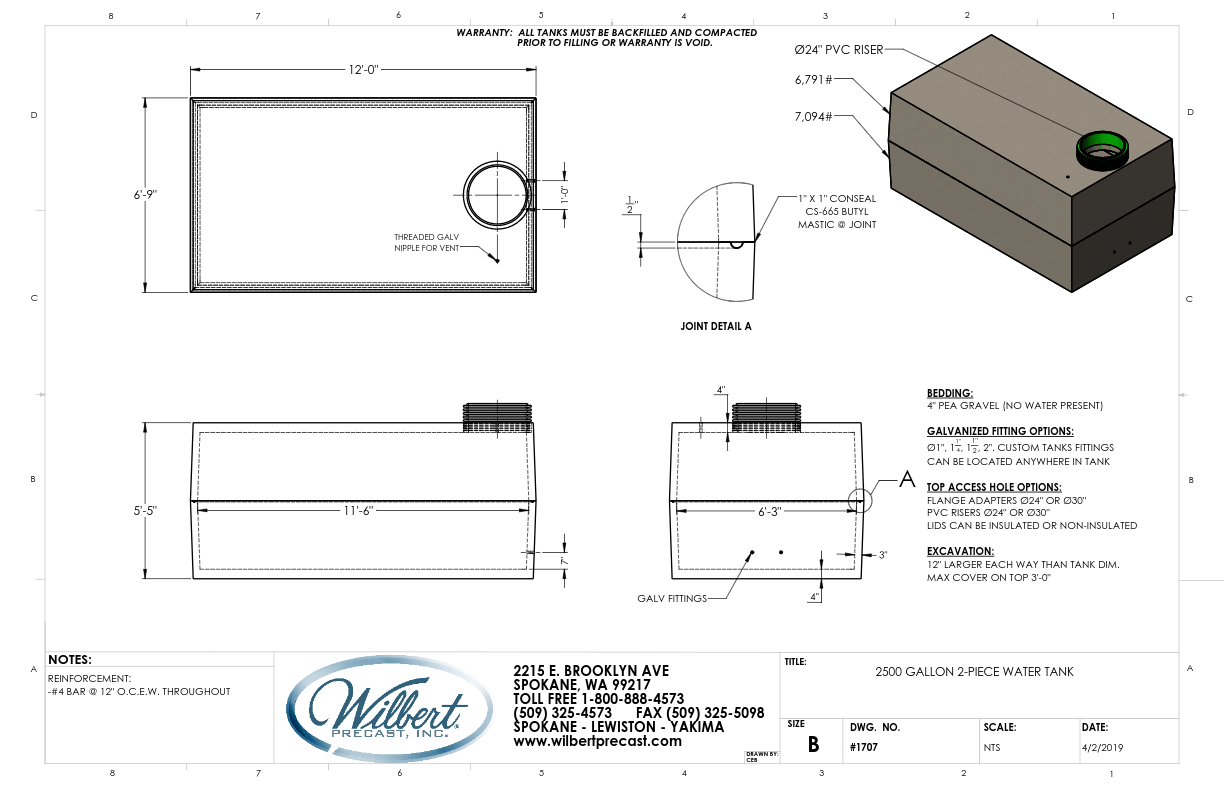

2500 Gallon
Dimensions: 6'9" x 12'0" x 5'5" Weight: 14,200 lbs.
Product ID: 1707
View PDF
Download

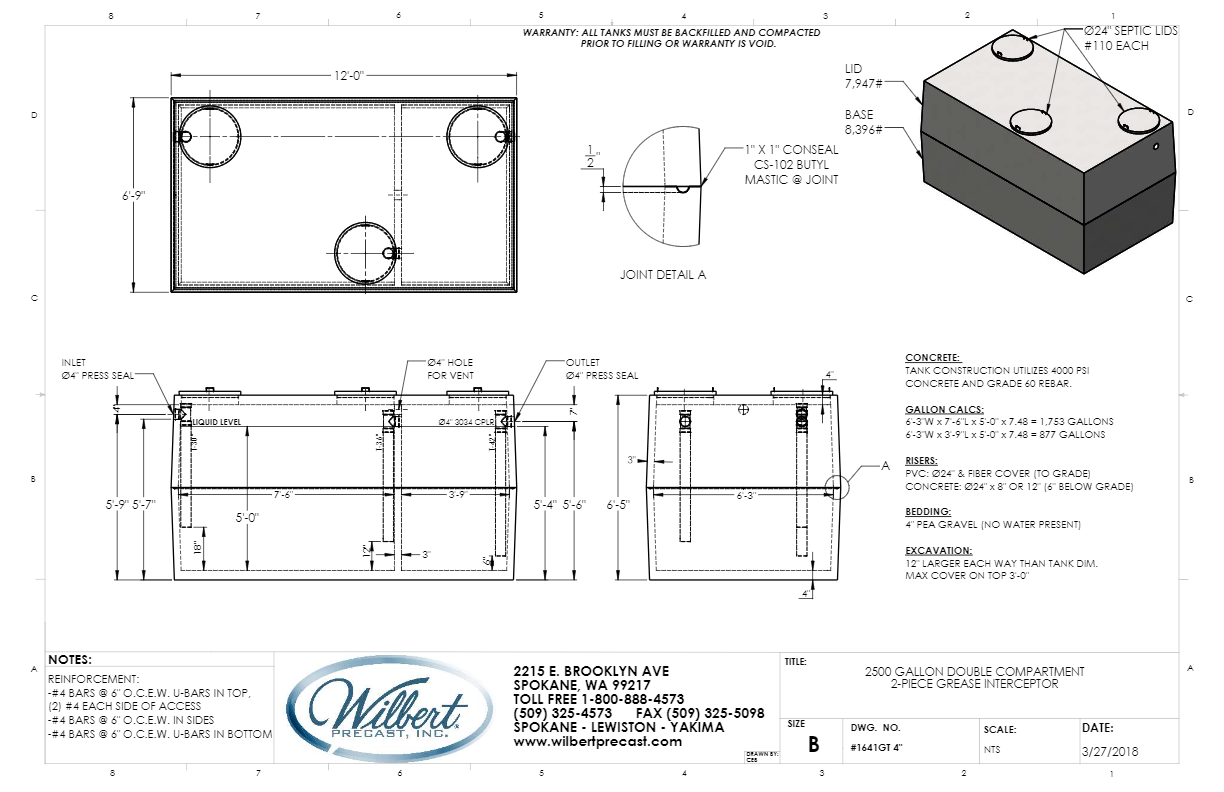

2500 Gallon Dbl Compartment Grease Interceptor
Dimensions: 12'-0" X 6'-9" X 6'-5" Weight: 16343 lbs.
Product ID: 1641
Product ID Double: 1641GTTB
View PDF
2500 Gallon Dbl Compartment Septic Tank
Dimensions: 12'-0" X 6'-9" X 6'-5" Weight: 16595 lbs.
Product ID: 1641
View PDF

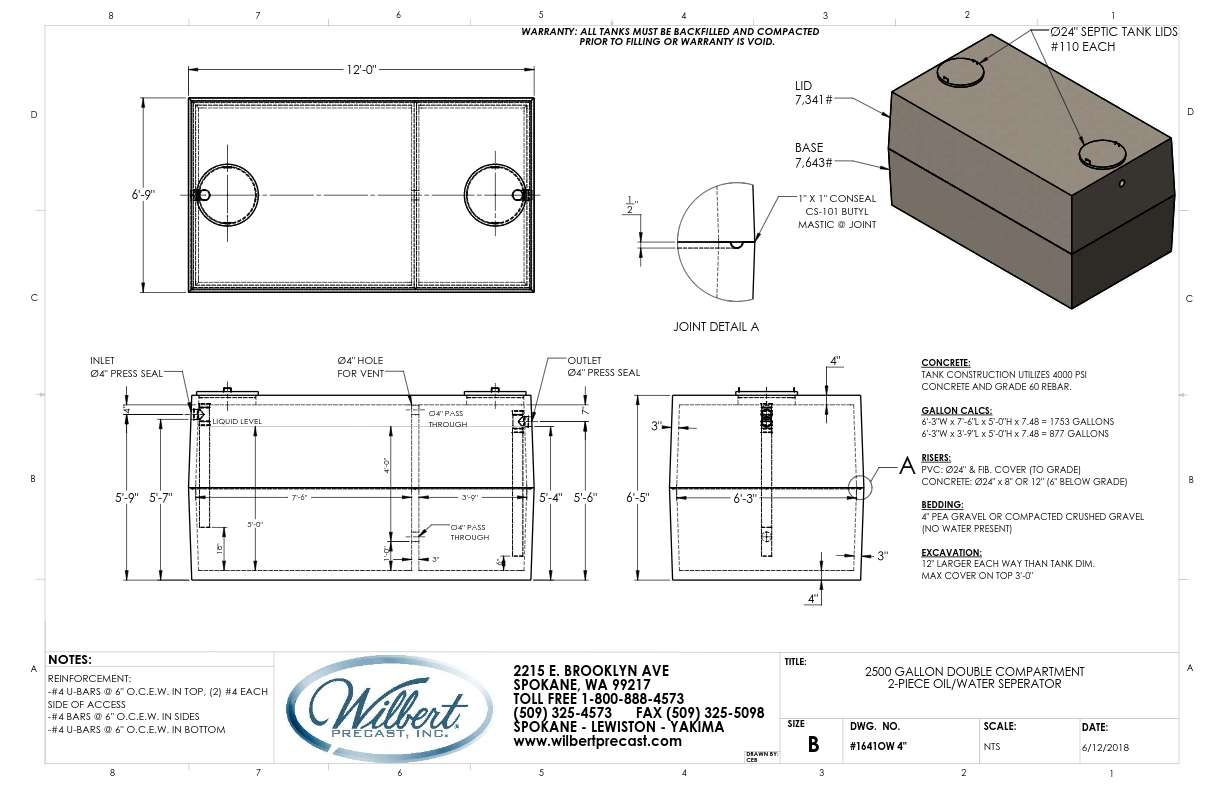

2500 Gallon Oil/Water Separator
Weight: 16,860 lbs.
Product ID: 1641OW
Product ID Double: 1641OWTB
View PDF
2500 Gallon Sgl Compartment Septic Tank
Dimensions: 12'-0" X 6'-9" X 6'-5" Weight: 15270 lbs.
Product ID: 1617
Product ID Double: 1641
View PDF

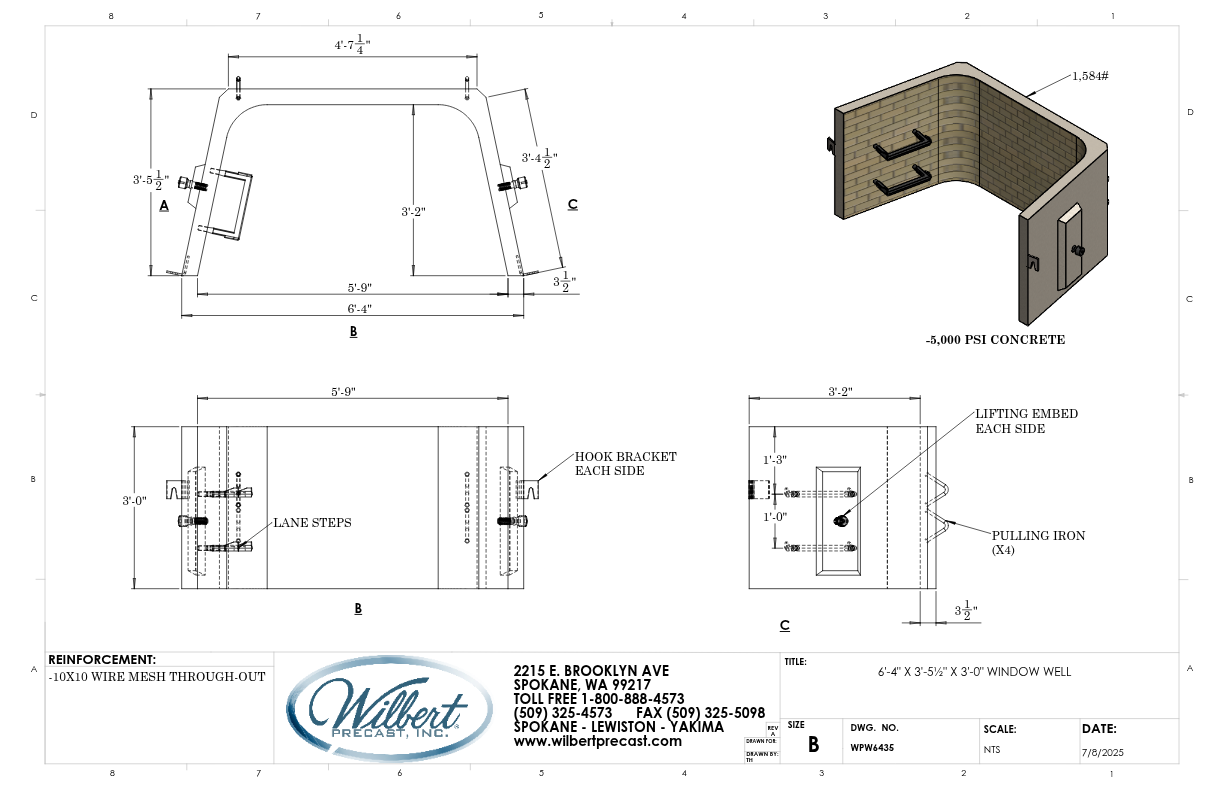

3′ Window Well
Dimensions: 6'-4" X 3'-2" X 3'-0" Weight: 1584 lbs.
Product ID: WPW6435-3
View PDF

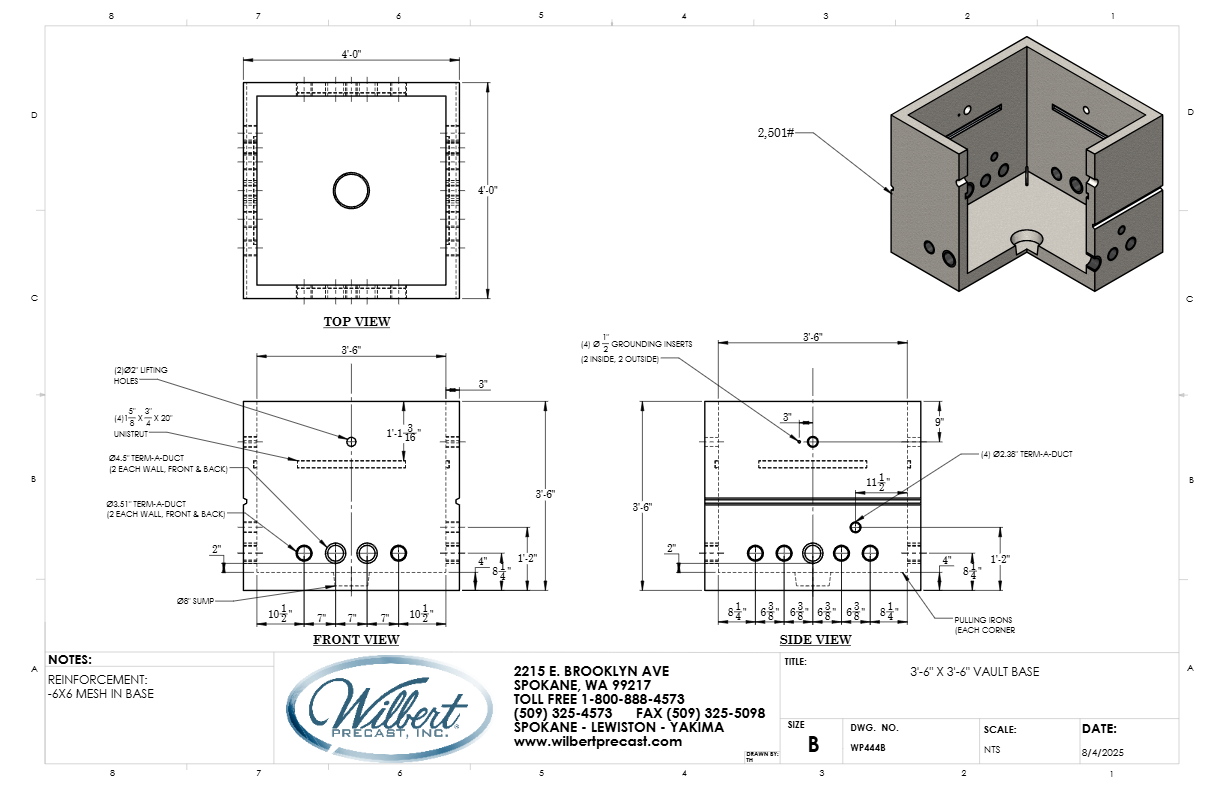

3′-6″ X 3′-6″ WP444 Vault Base
Dimensions: 4'-0" X 4'-0" X 3'-6" Weight: 2501 lbs.
Product ID: WP444B
View PDF

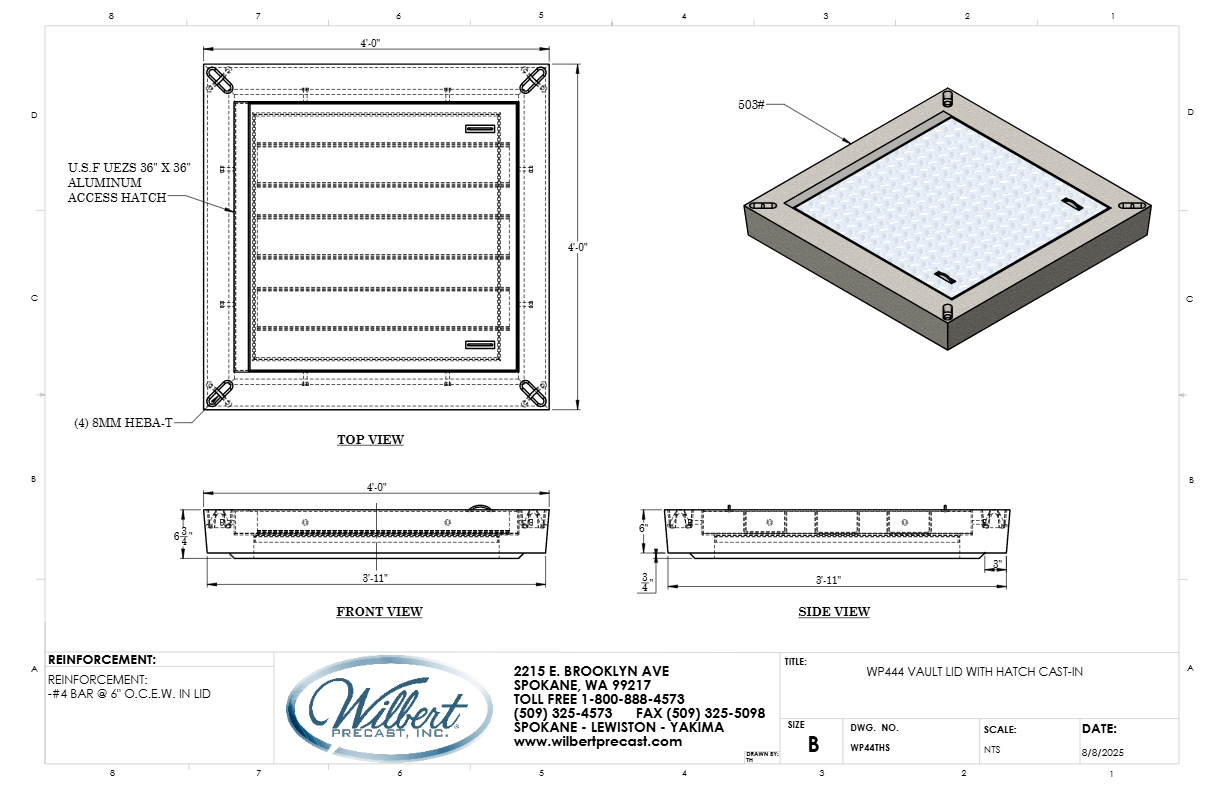

3′-6″ X 3′-6″ WP444 Vault Lid with Hatch
Dimensions: 4'-0" X 4'-0" X 6¾" Weight: 503 lbs.
Product ID: WP44THS
View PDF

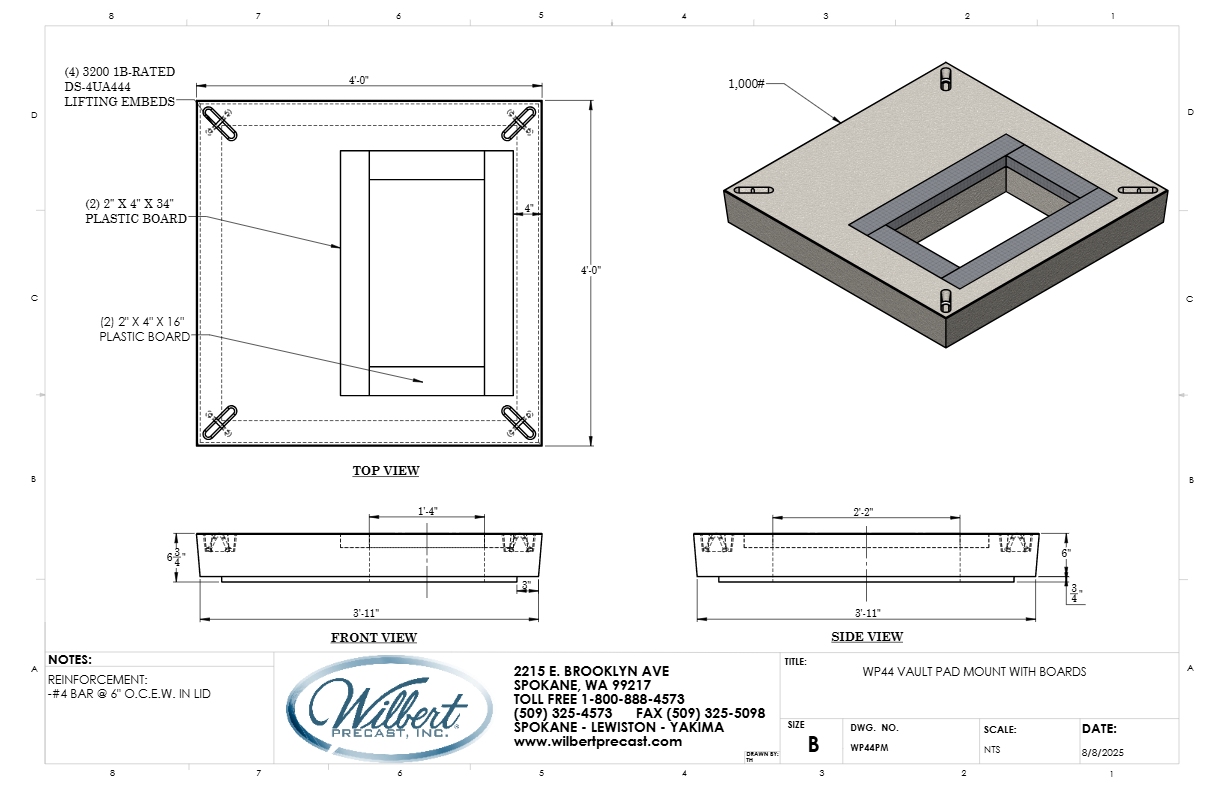

3′-6″ X 3′-6″ WP444 Vault Pad Mount (PCORP)
Dimensions: 4'-0" X 4'-0" X 6¾" Weight: 1000 lbs.
Product ID: WP44PM
View PDF

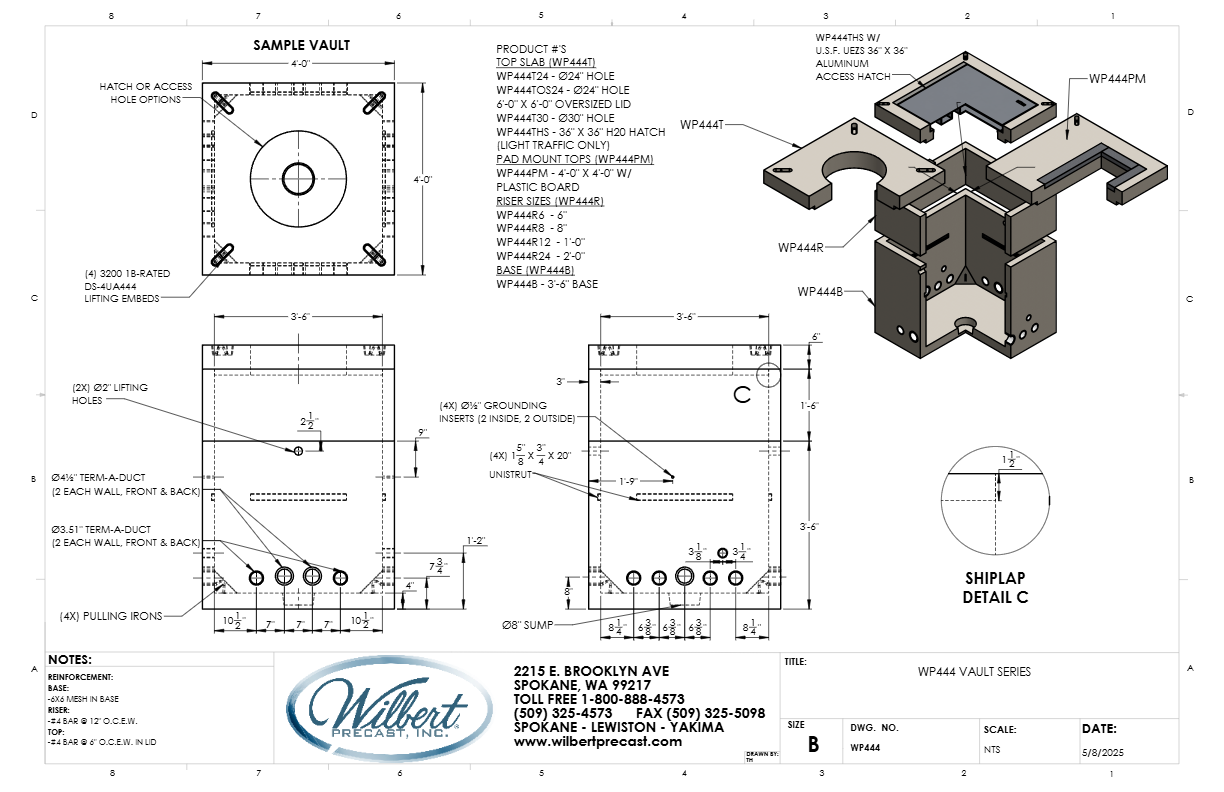

3′-6″ X 3′-6″ WP444 Vault Series
Dimensions: See Individual Drawings Product ID: WP444
View PDF

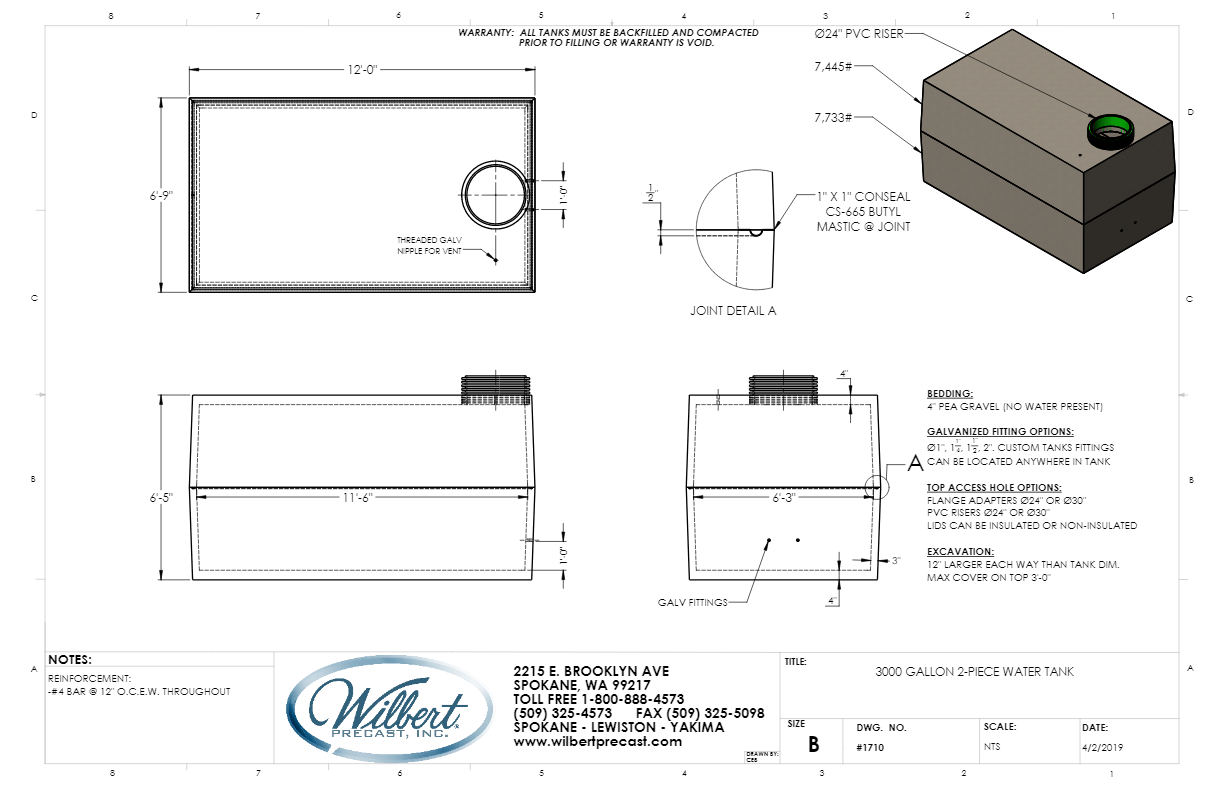

3000 Gallon
Dimensions: 6'0" x 13'0" x 6'11" Weight: 19,900 lbs.
Product ID: 1710P
View PDF
Download

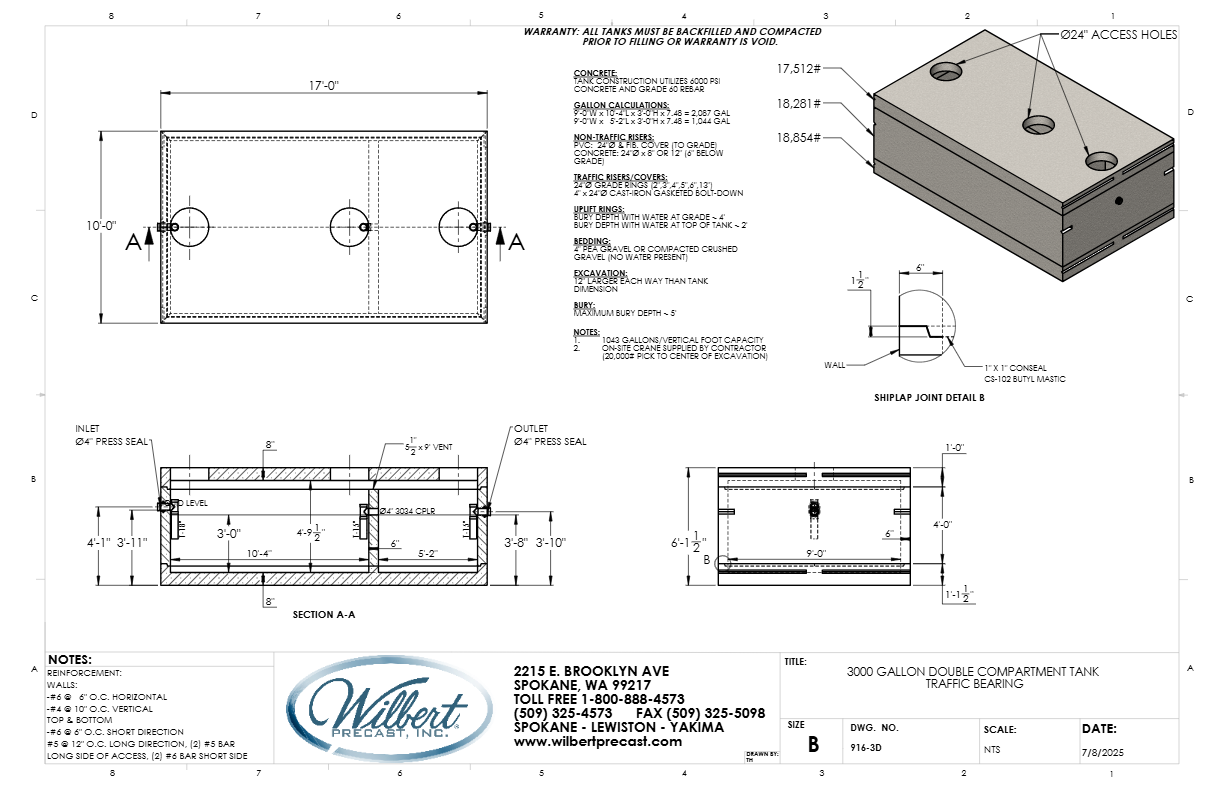

3000 Gallon Double Compartment Septic Tank
Dimensions: 10'-0" X 17'-0" X 6'-1½" Weight: 54647 lbs.
Product ID: #916-3D
View PDF

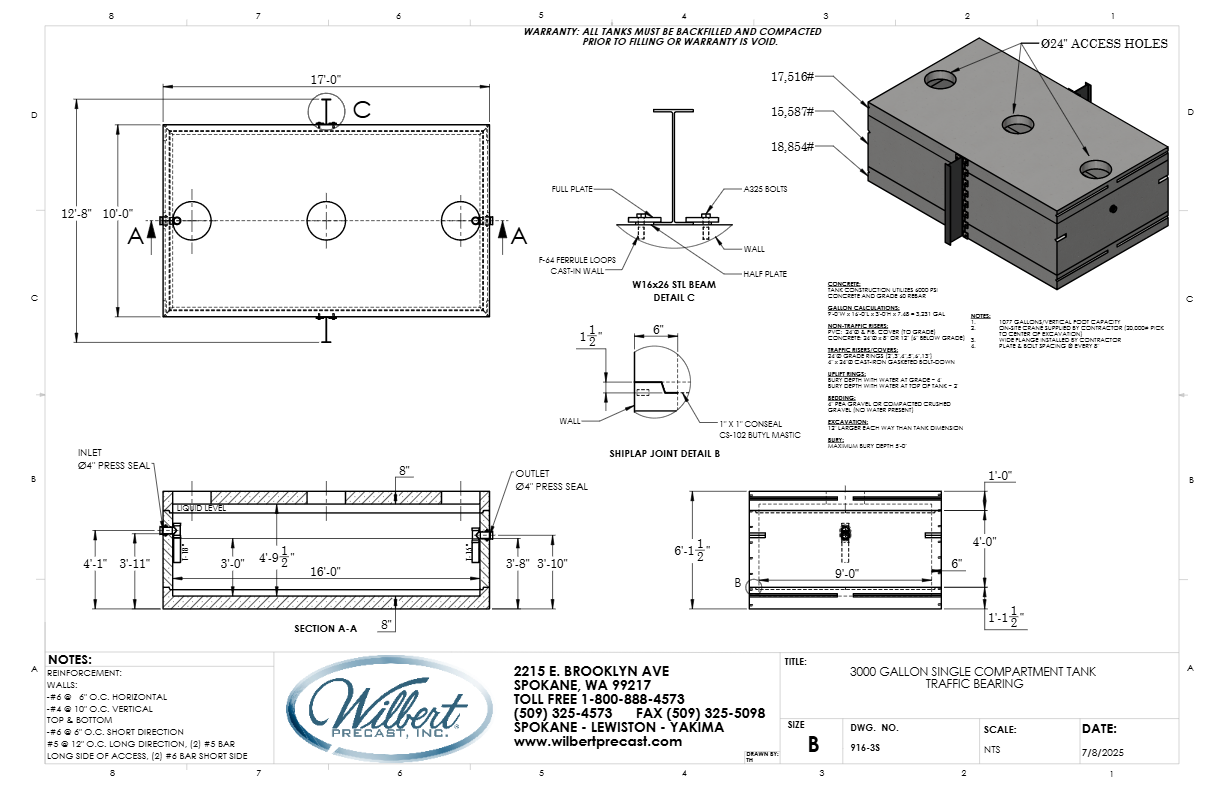

3000 Gallon Single Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 6'-1½" Weight: 51957 lbs.
Product ID: #916-3S
View PDF

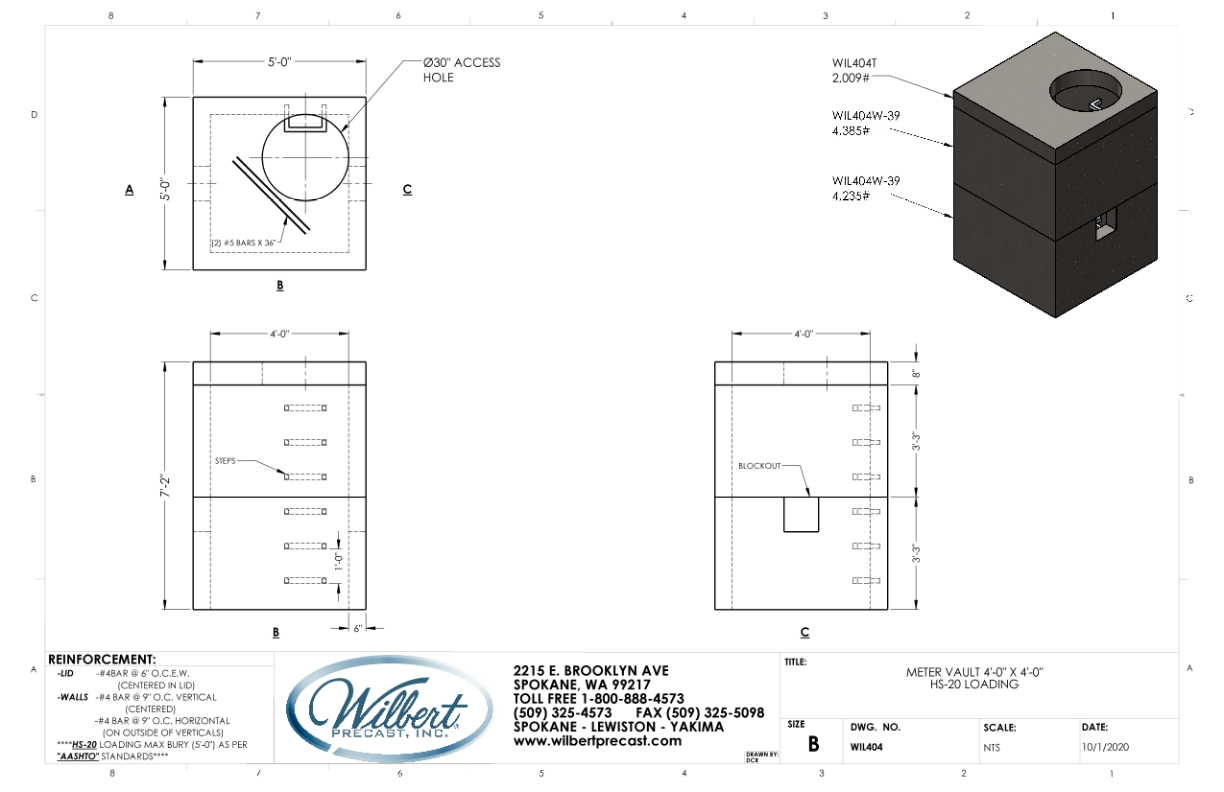

4′-0″ X 4′-0″ X 6′-6″ Inside Height
Weight: 10,629 lbs.
Product ID: WIL404
View PDF

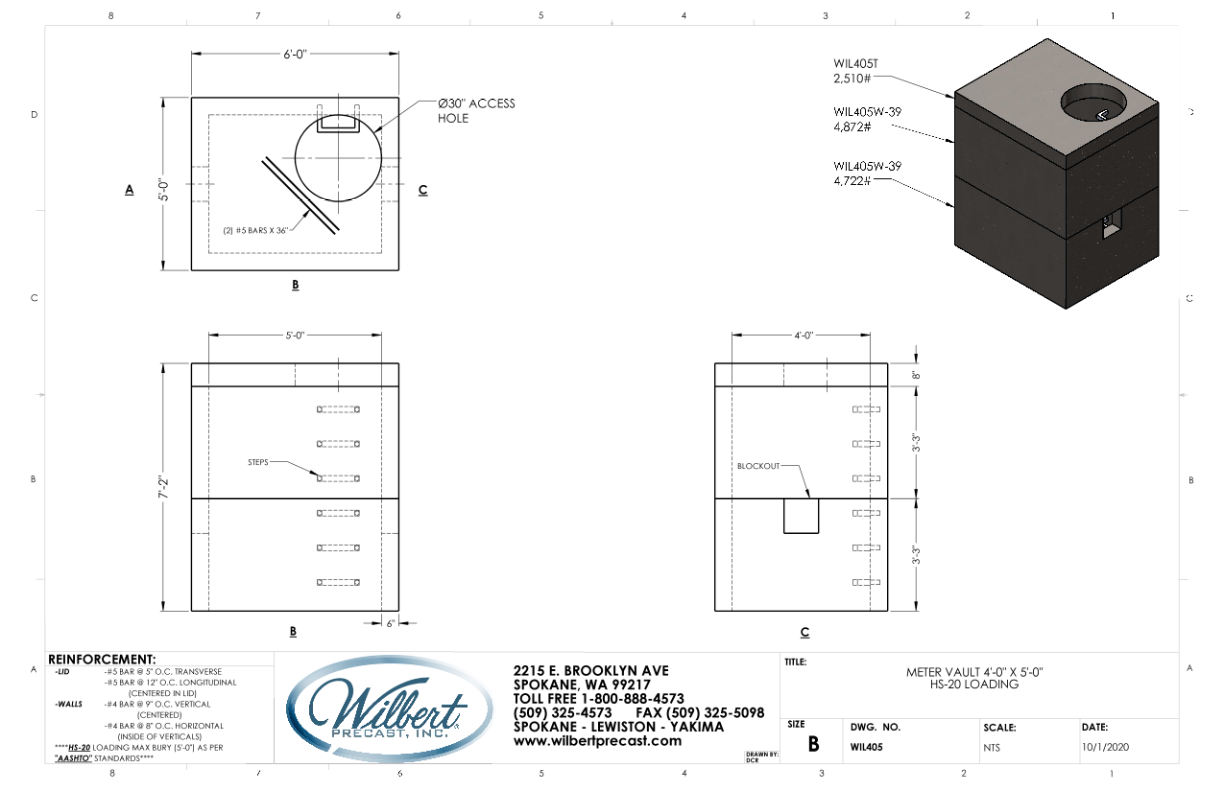

4′-0″ x 5′-0″ x 6′-6″ Inside Height
Weight: 12,104 lbs.
Product ID: WIL405
View PDF

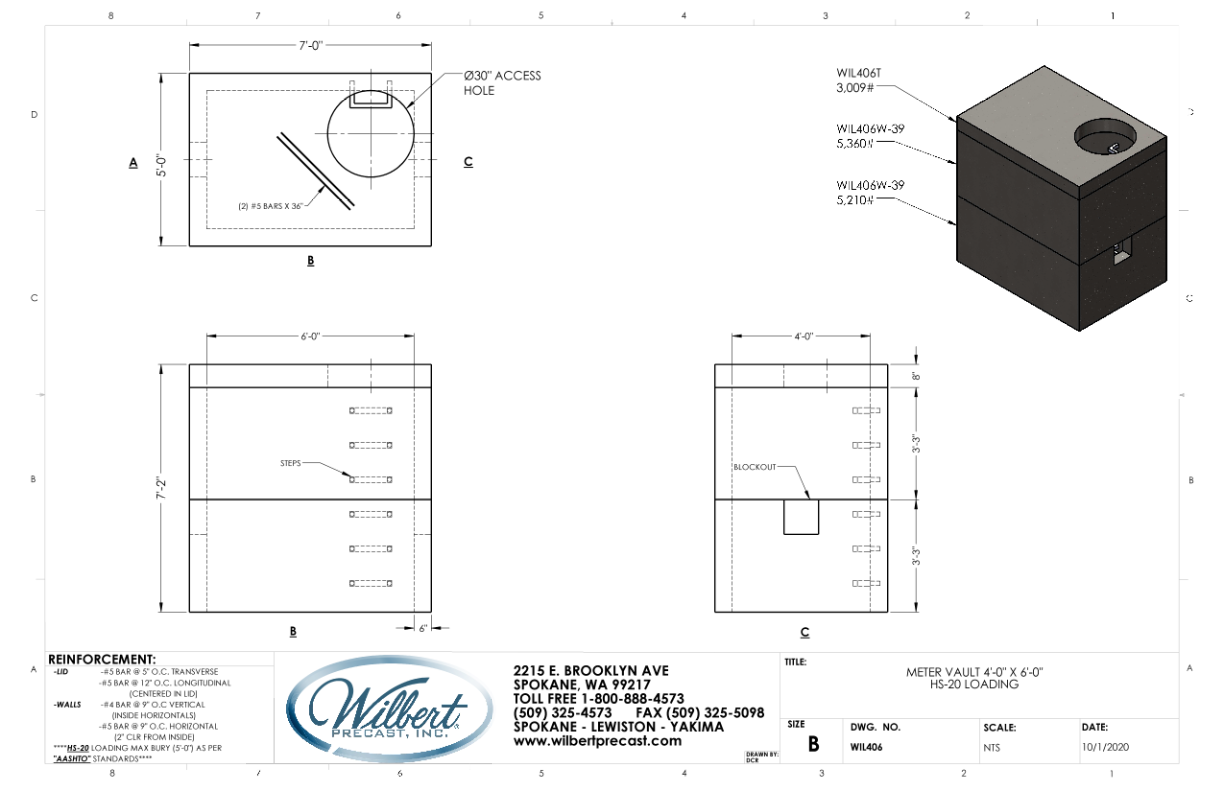

4′-0″ x 6′-0″ x 6′-6″ Inside Height
Weight: 13,579 lbs.
Product ID: WIL406
View PDF
4′-2″ X 6′-6″ WP57 Vault Lid with Double Hatch
Dimensions: 7'-2" X 4'-10" X 6¾" Weight: 1267 lbs.
Product ID: WP57THD
View PDF

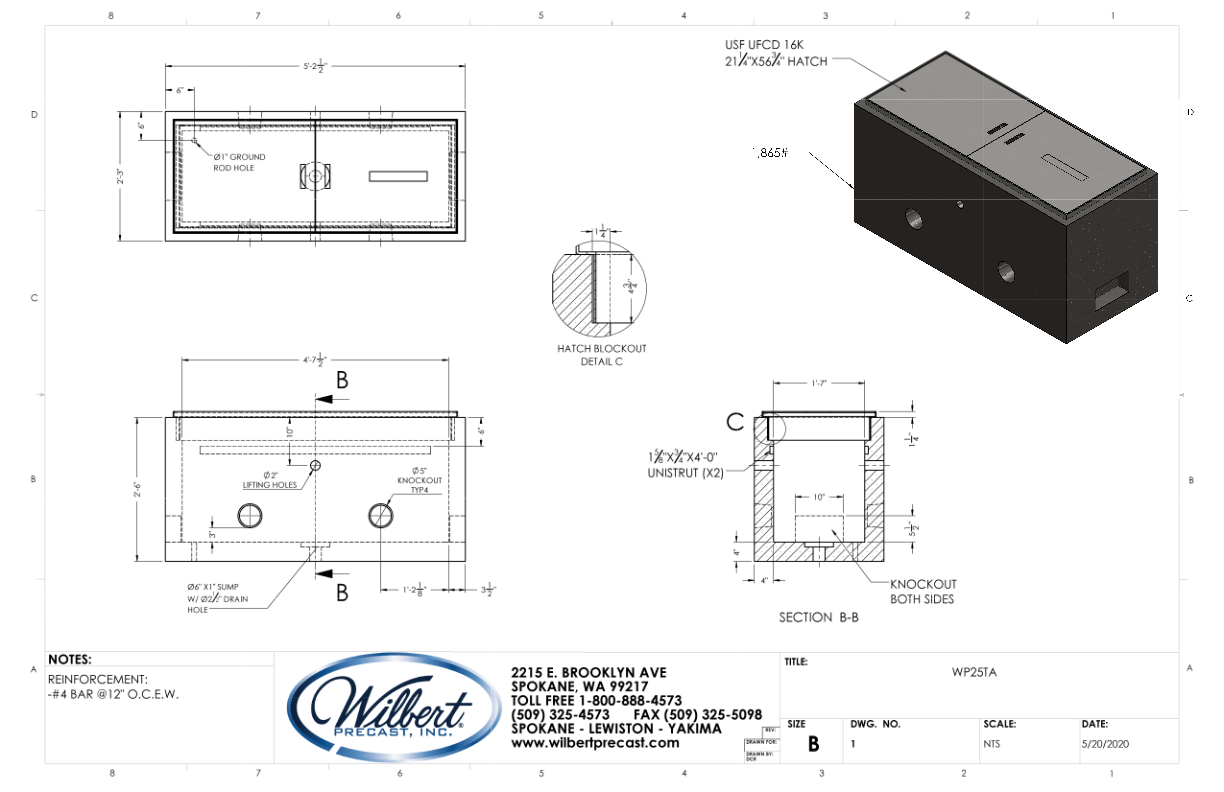

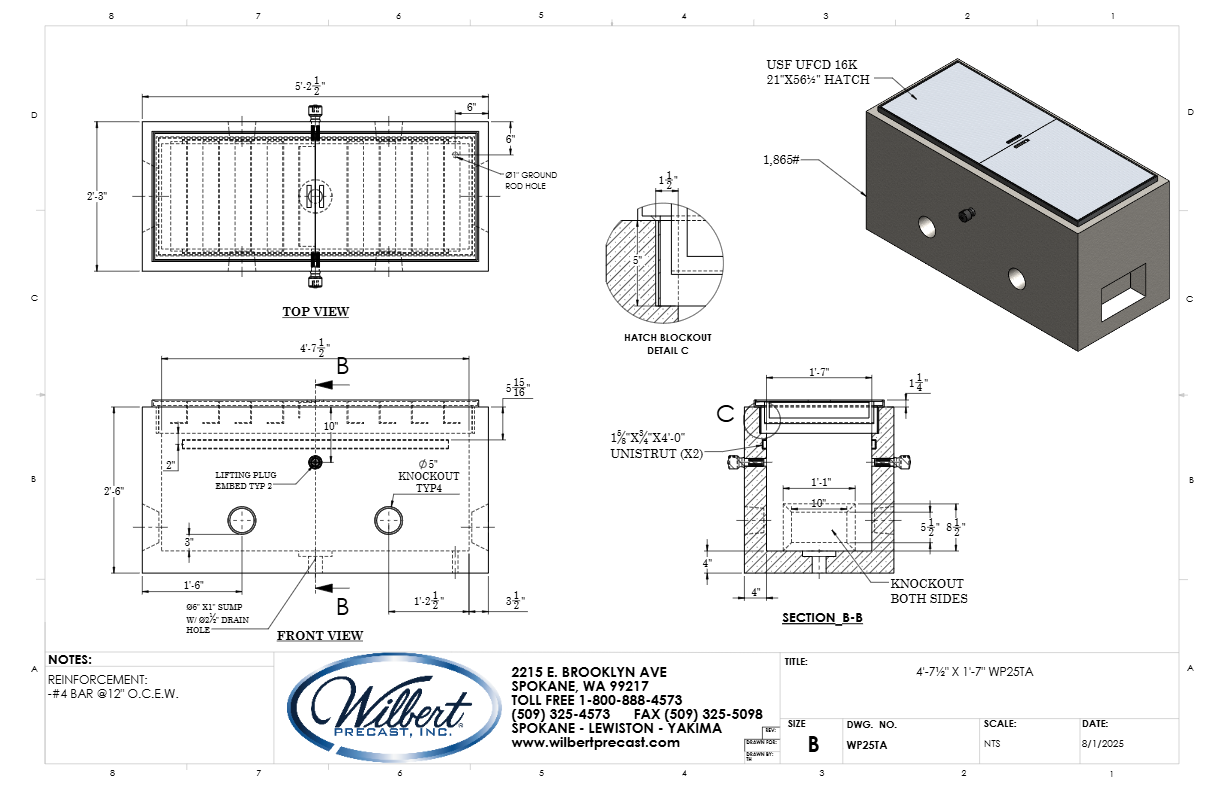

4′-7″ X 1′-7″ WP25TA
Dimensions: 5'-2½" X 2'-3" X 2'-6" Weight: 1865 lbs.
Product ID: WP25TA
View PDF

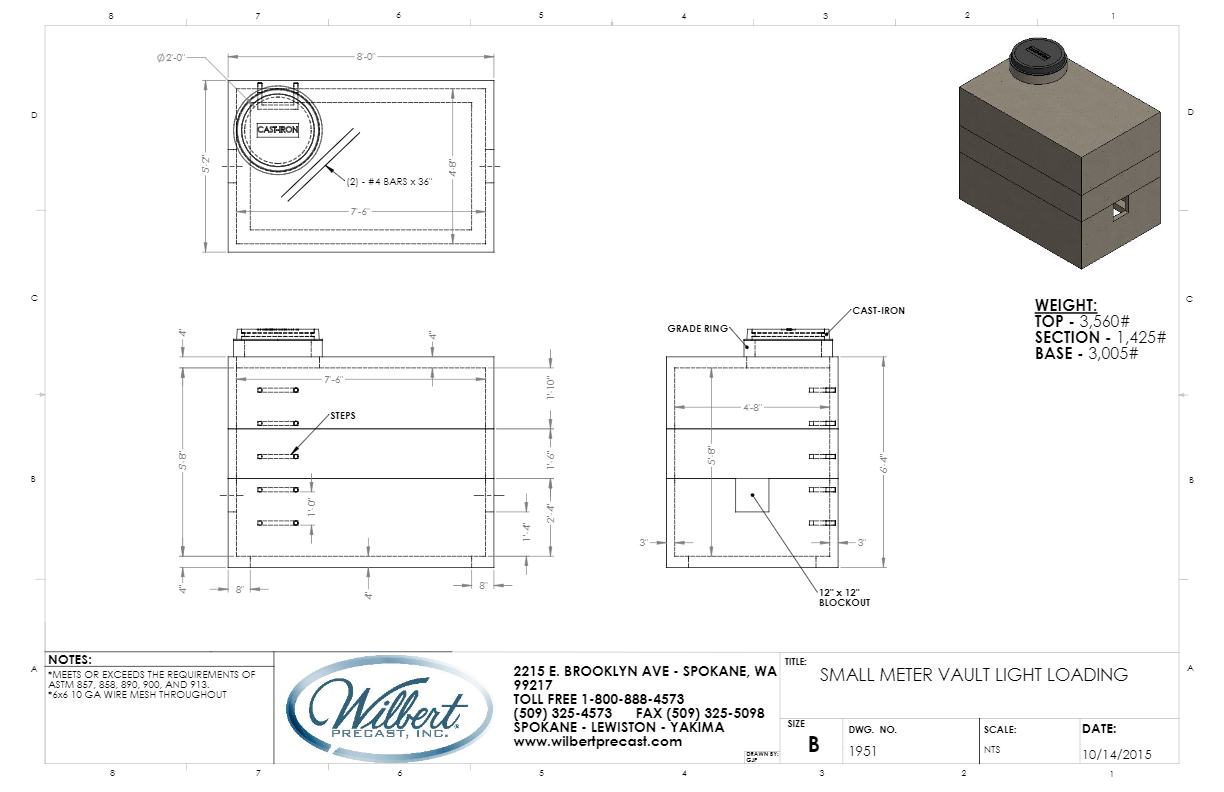

4’8″ x 7’6″ x 6’0″ High Inside
Weight: 9,280 lbs.
Product ID: 1951
Product ID Double: 1901
View PDF

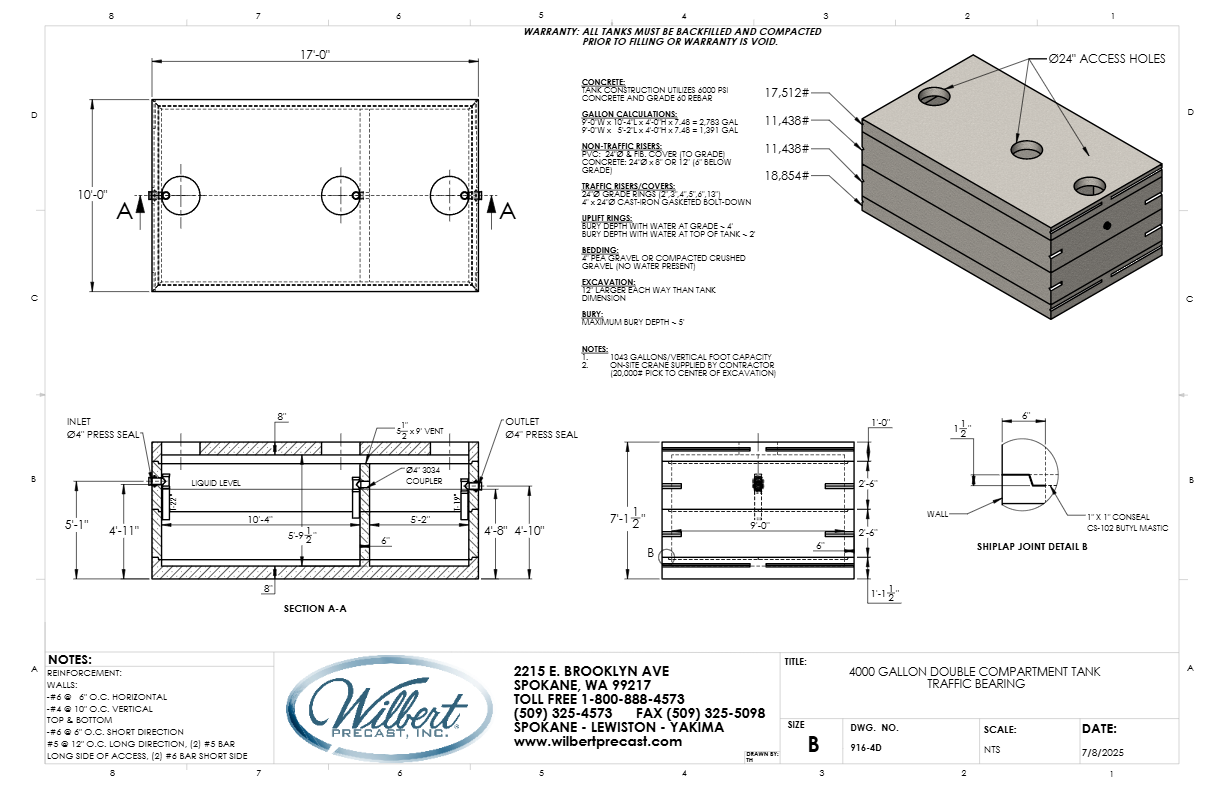

4000 Gallon Double Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 7'-1½" Weight: 59242 lbs.
Product ID: #916-4D
View PDF

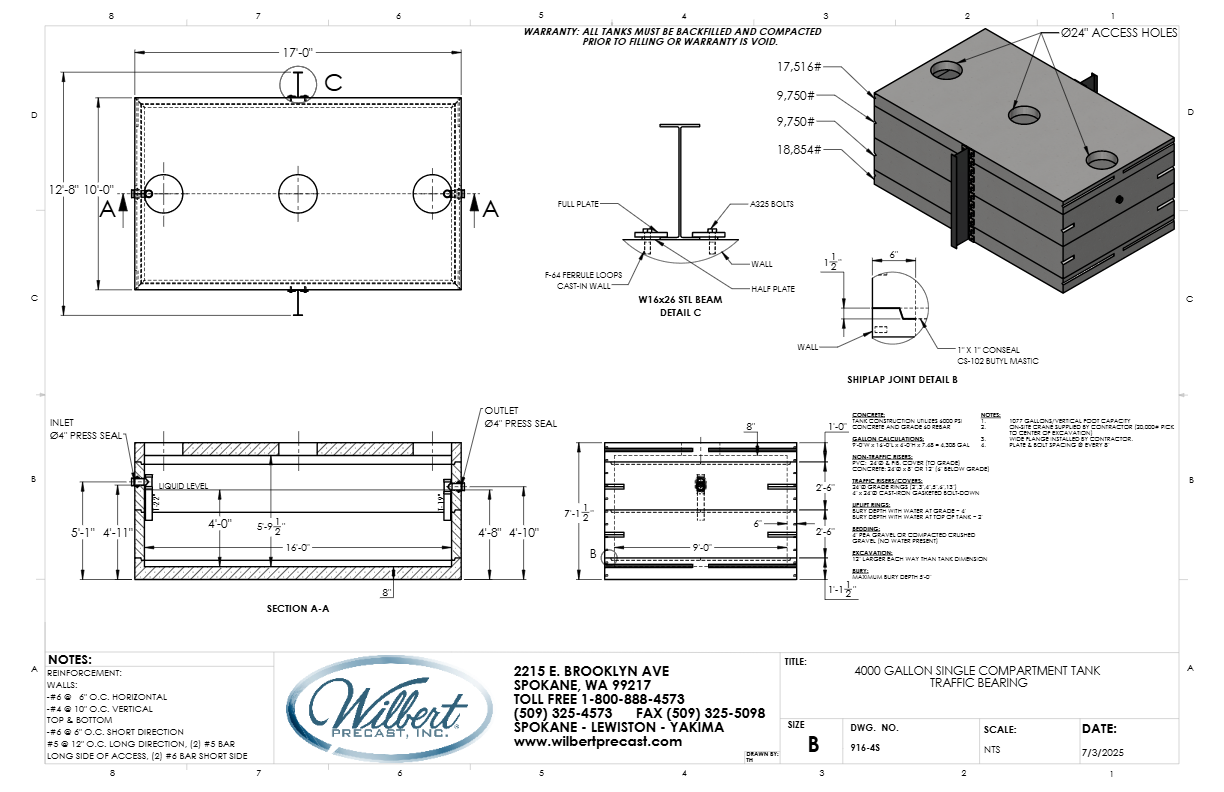

4000 Gallon Single Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 7'-1½" Weight: 55870 lbs.
Product ID: 916-4S
View PDF
5 Outlet Septic Distribution Box
Dimensions: 1'-3½" X 11" X 1'-¼" Weight: 83 lbs.
Product ID: 1651-5
View PDF

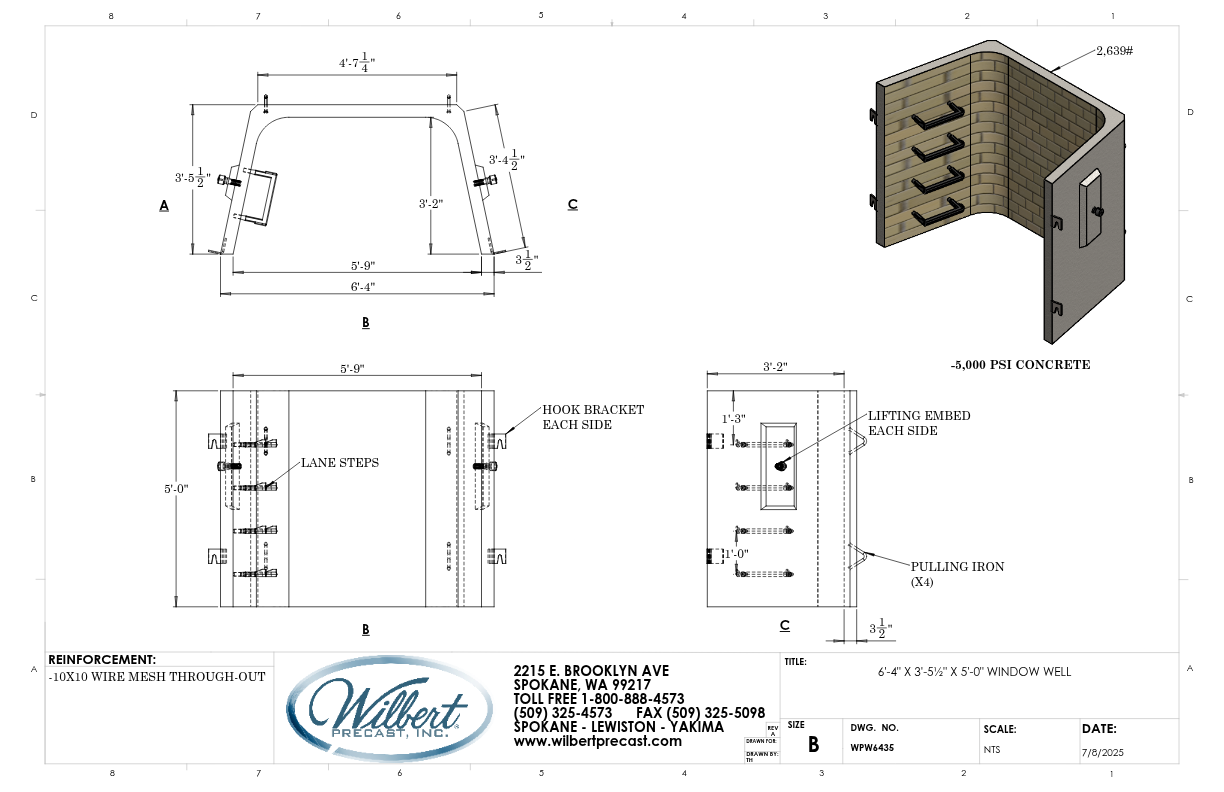

5′ Window Well
Dimensions: 6'-4" x 3'-5½" x 5'-0" Weight: 2639 lbs.
Product ID: WPW6435-5
View PDF
5′-6″ X 7′-6″ Pad Mount for WP57 Vault (PCORP)
Dimensions: 7'-6" X 5'-6" X 6" Weight: 1778 lbs.
Product ID: WP5676PM6T
View PDF

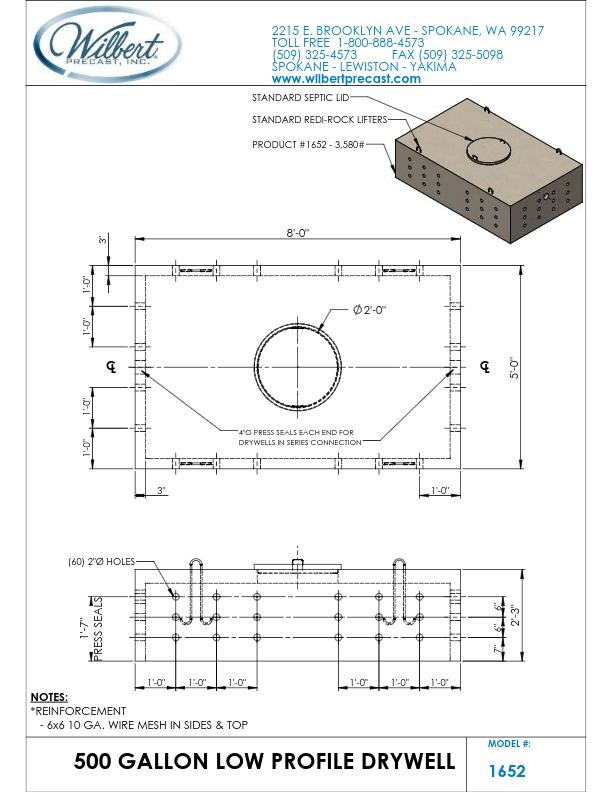

500 Gallon Low Profile Drywall – Heavy
Dimensions: 8'-0" X 5'-2" X 2'-5½" Weight: 4952 lbs.
Product ID: 1652
View PDF

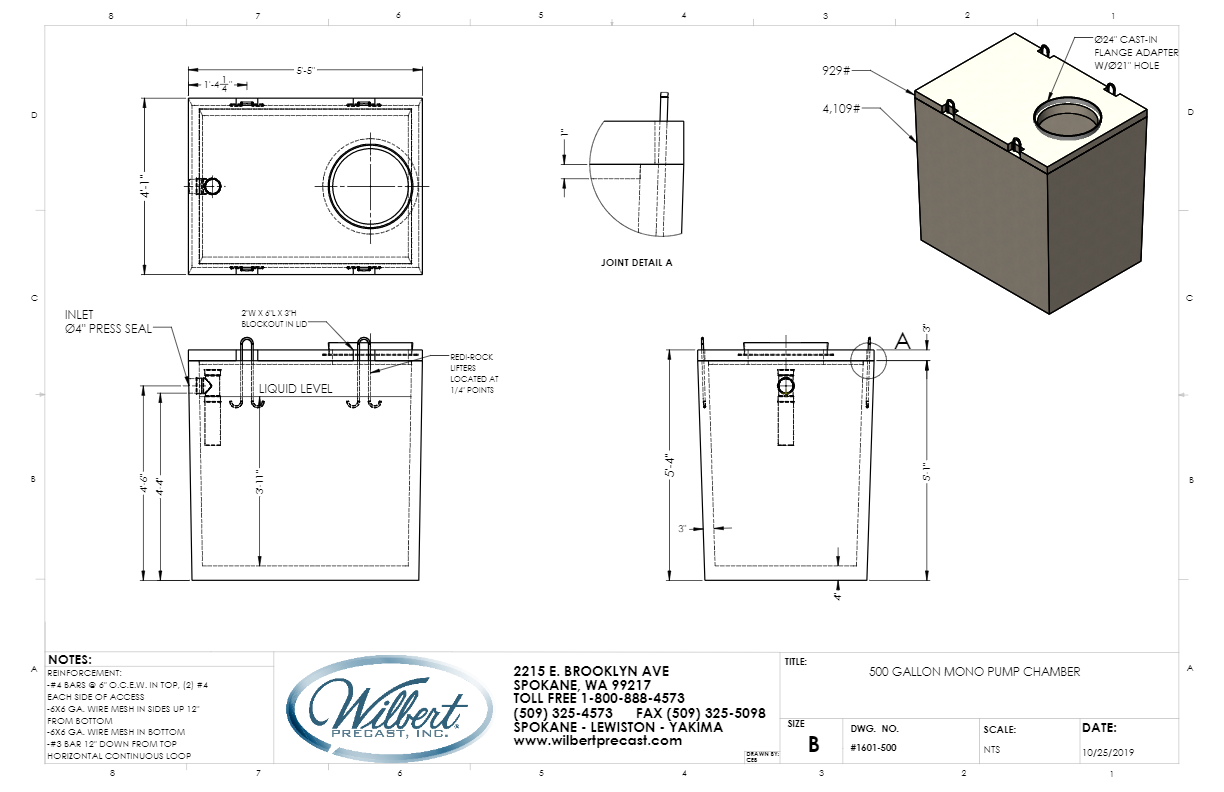

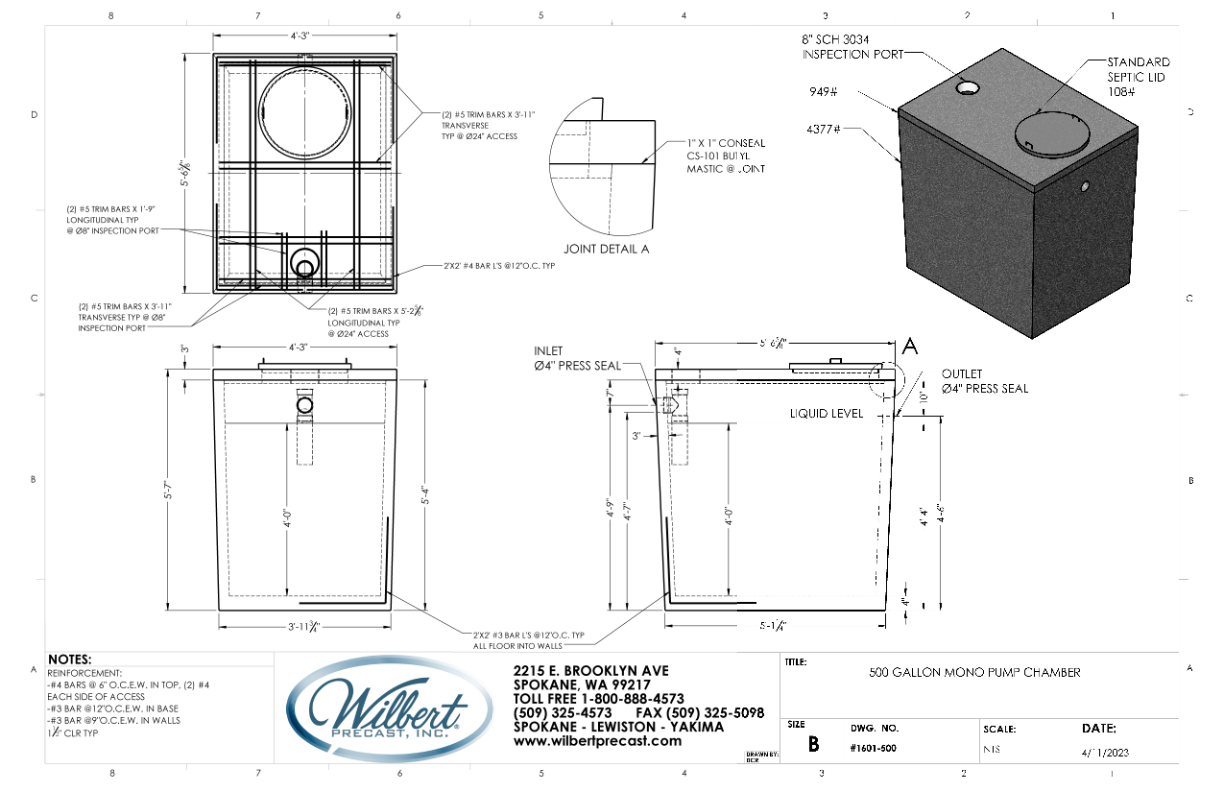

500 Gallon Mono Pump Chamber
Dimensions: 5'-6" X 4'-3" X 5'-7" Weight: 4994 lbs.
Product ID: 1601-500
Product ID Double: 1601-500TB
View PDF
500 Gallon Mono Pump Chamber Heavy
Dimensions: 5'-6" X 4'-3" X 5'-10" Weight: 4994 lbs.
Product ID: 1601-500TB
View PDF

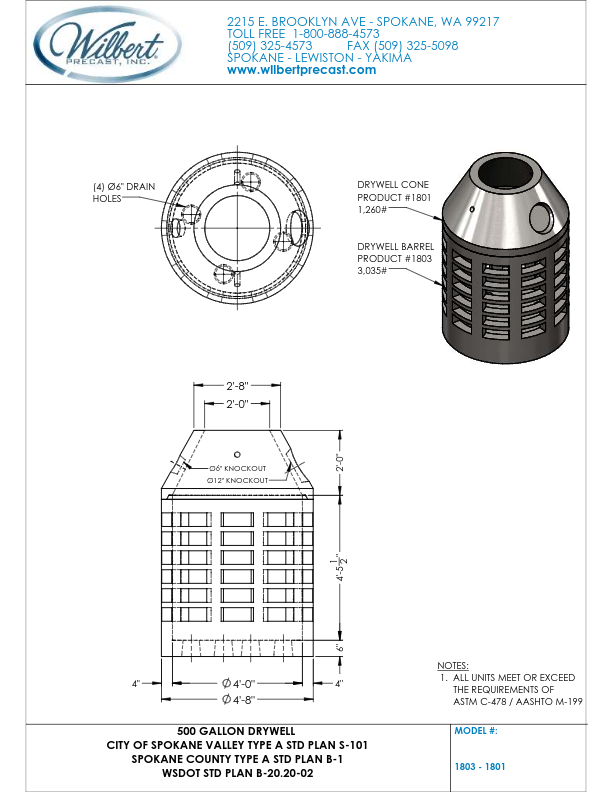

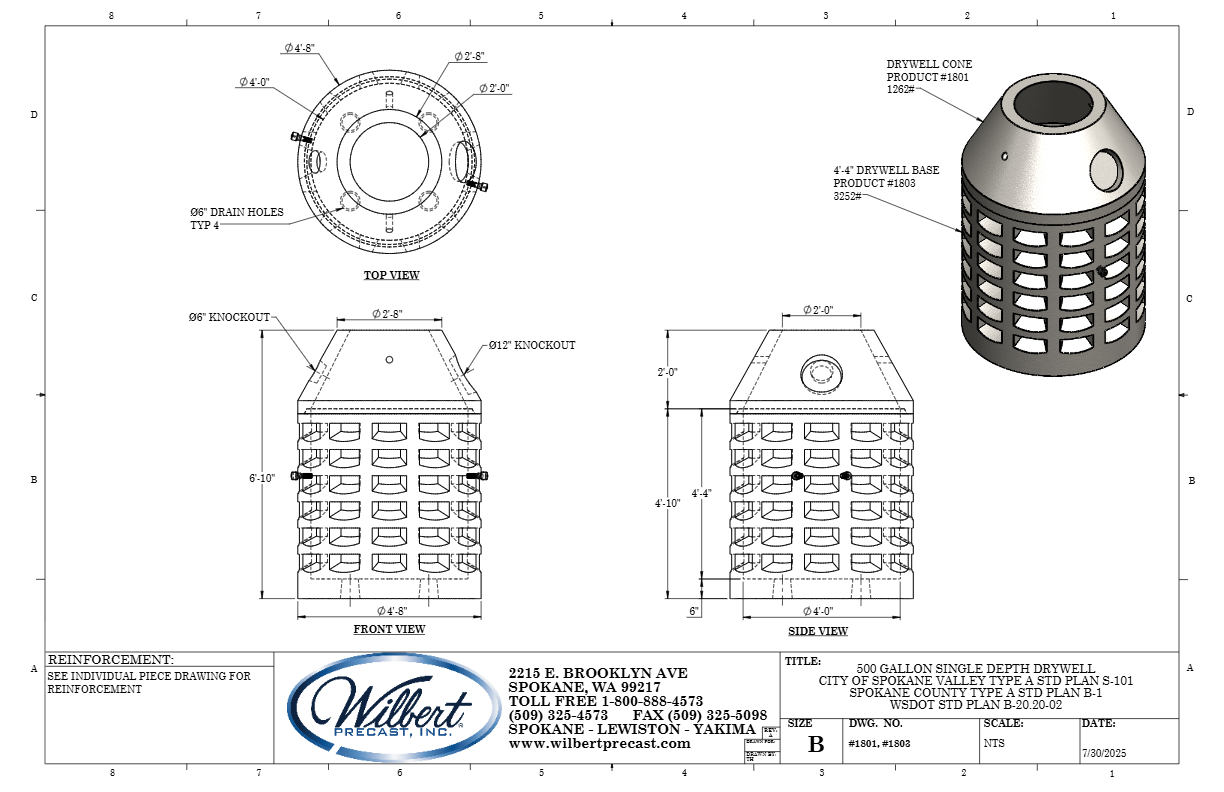

500 Gallon Single Depth Drywell
Dimensions: Ø4'-8 Weight: 4514 lbs.
Product ID: #1803/#1801
View PDF

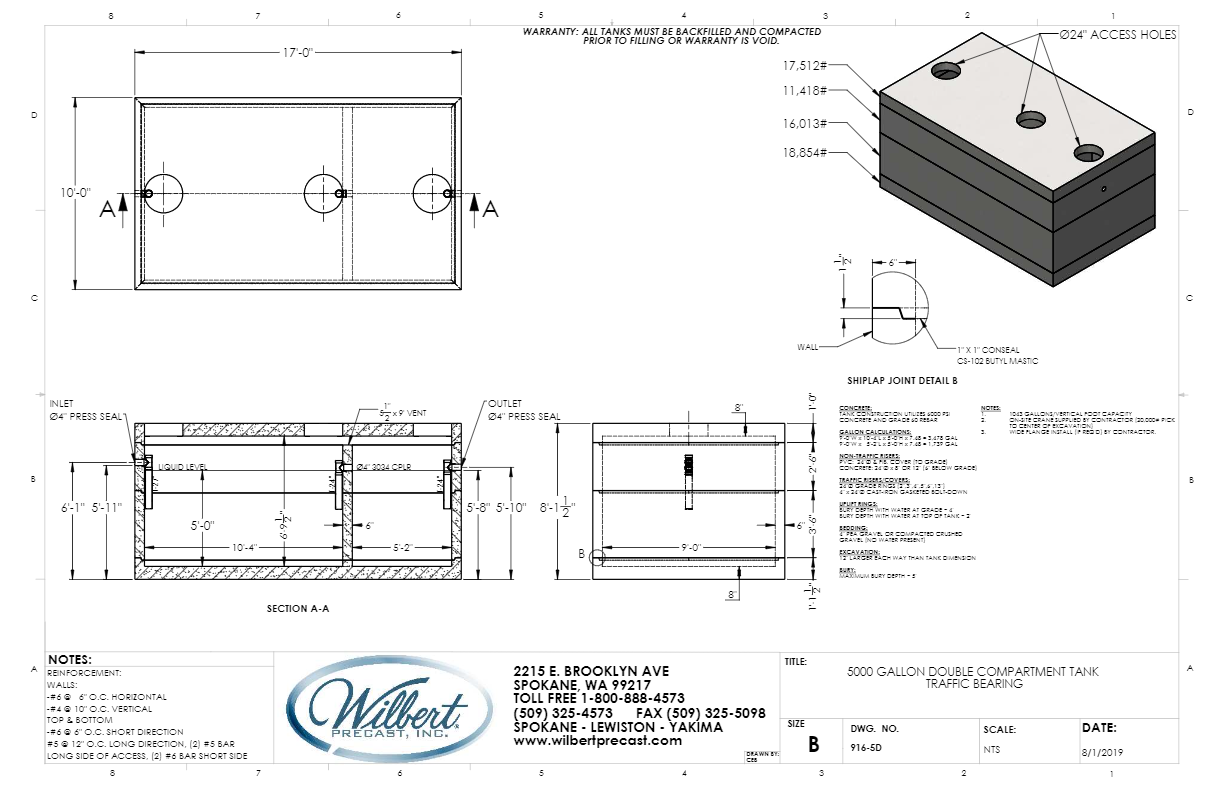

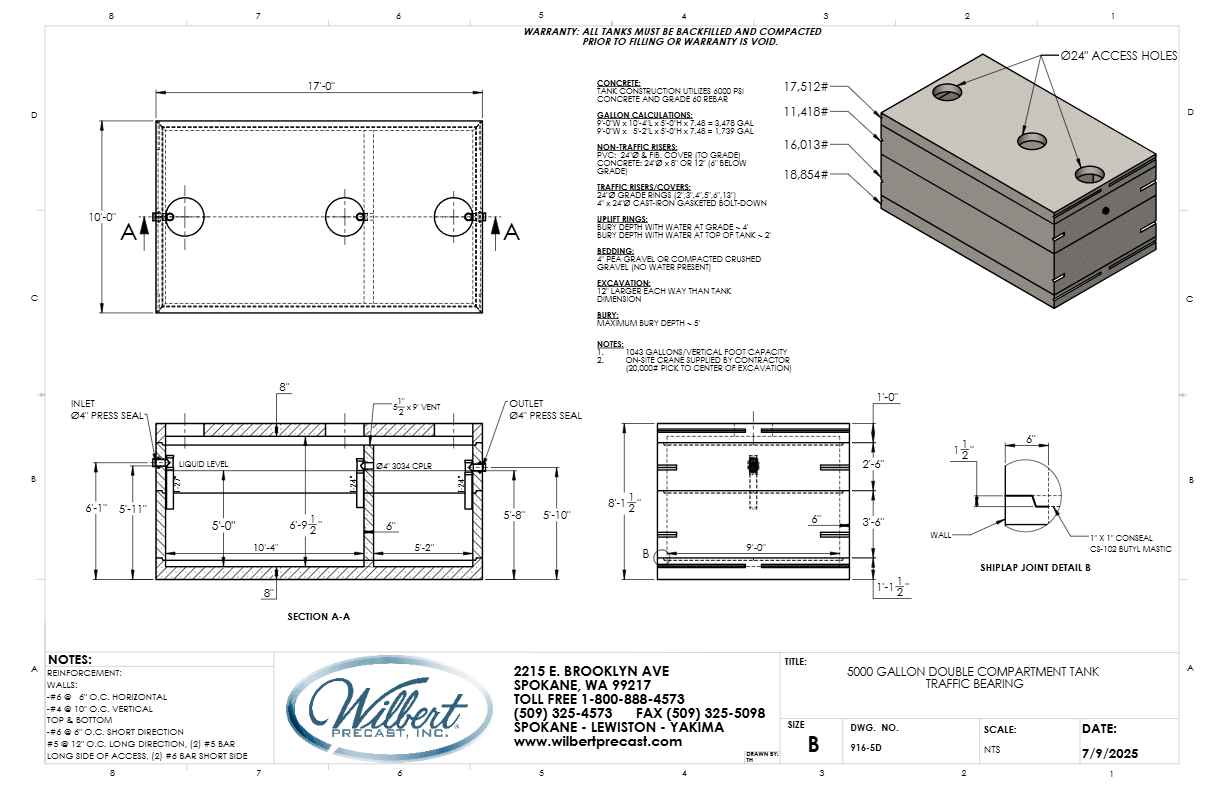

5000 Gallon Double Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 8'-1½" Weight: 63797 lbs.
Product ID: #916-5D
View PDF

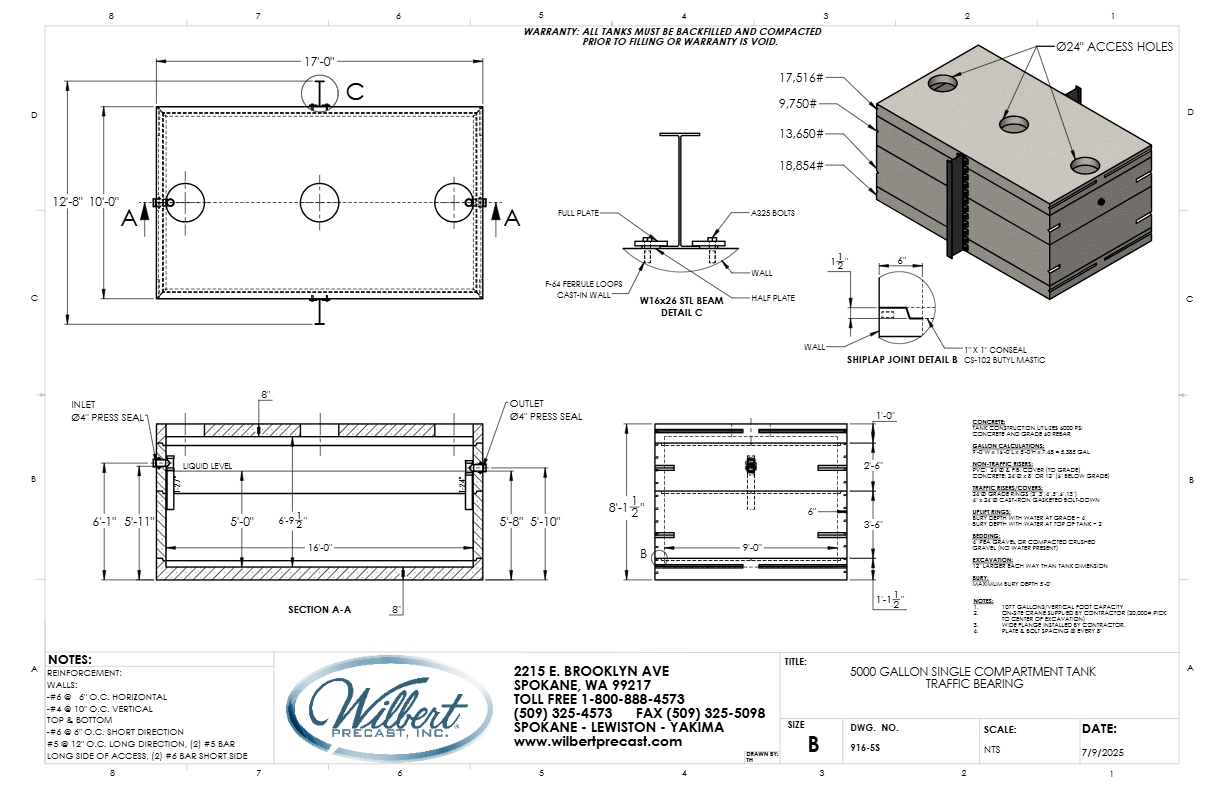

5000 Gallon Single Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 8'-1½" Weight: 59770 lbs.
Product ID: #916-5S
View PDF

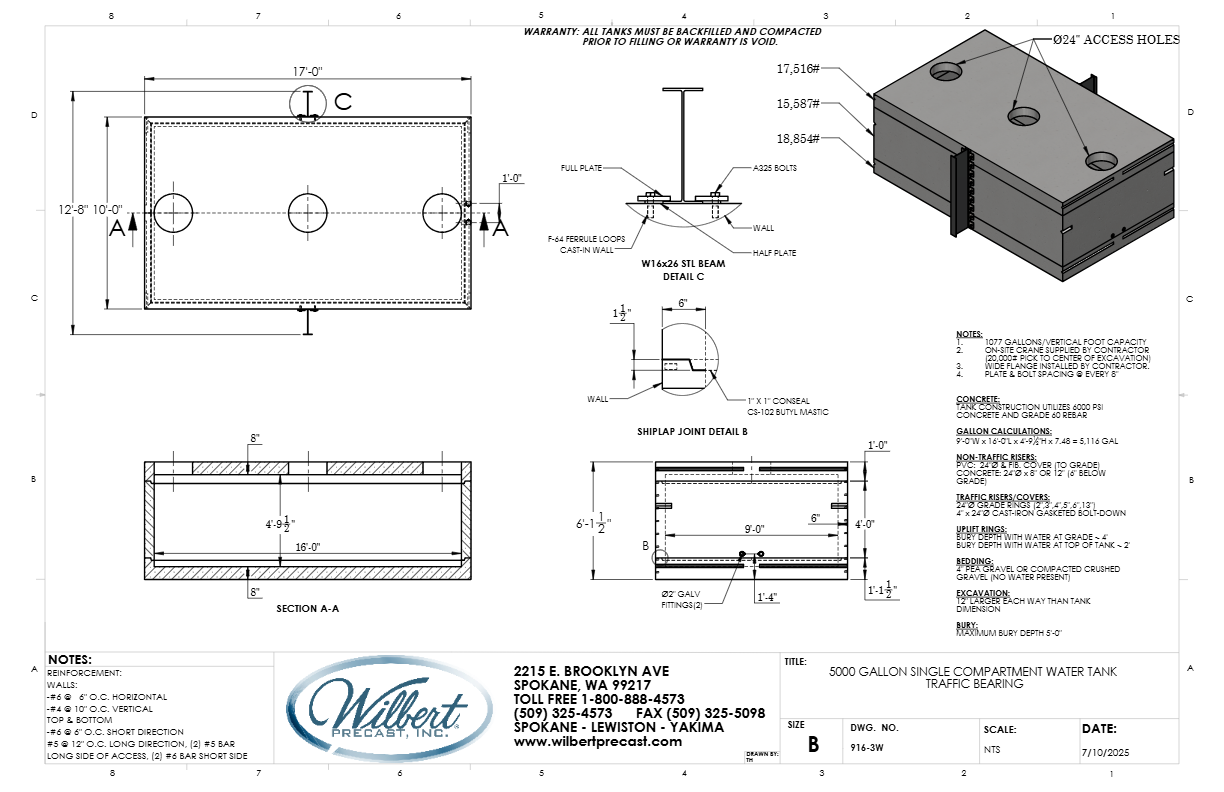

5000 Gallon Water Tank
Dimensions: 10'-0" x 17'-0" x 6'-1½" Weight: 51957 lbs.
Product ID: #916-3W
View PDF

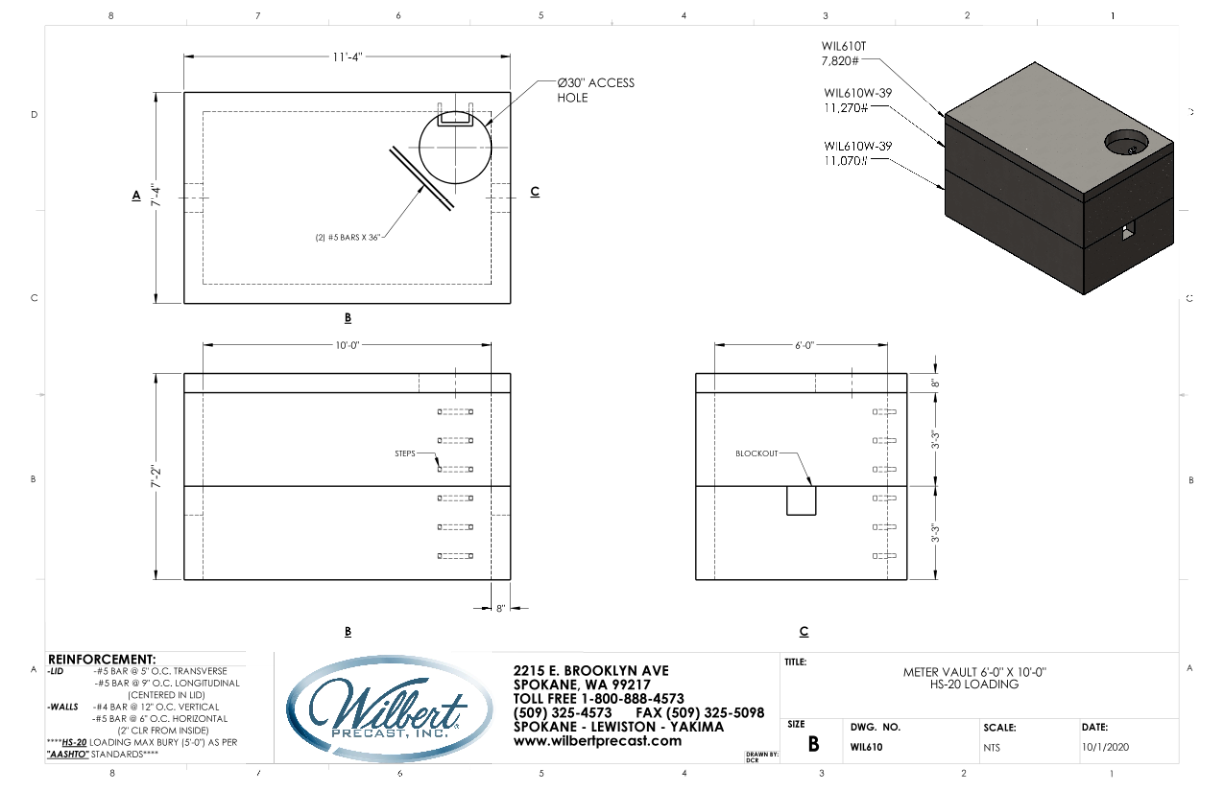

6′-0″ x 10′-0″ x 6′-6″ Inside Height
Weight: 30,160 lbs.
Product ID: WIL610
View PDF
6′-0″ x 12′-0″ Utility Vault
Dimensions: 13'-4" X 7'-4" X 7'-8" Weight: 41549 lbs.
Product ID: WIL612
View PDF

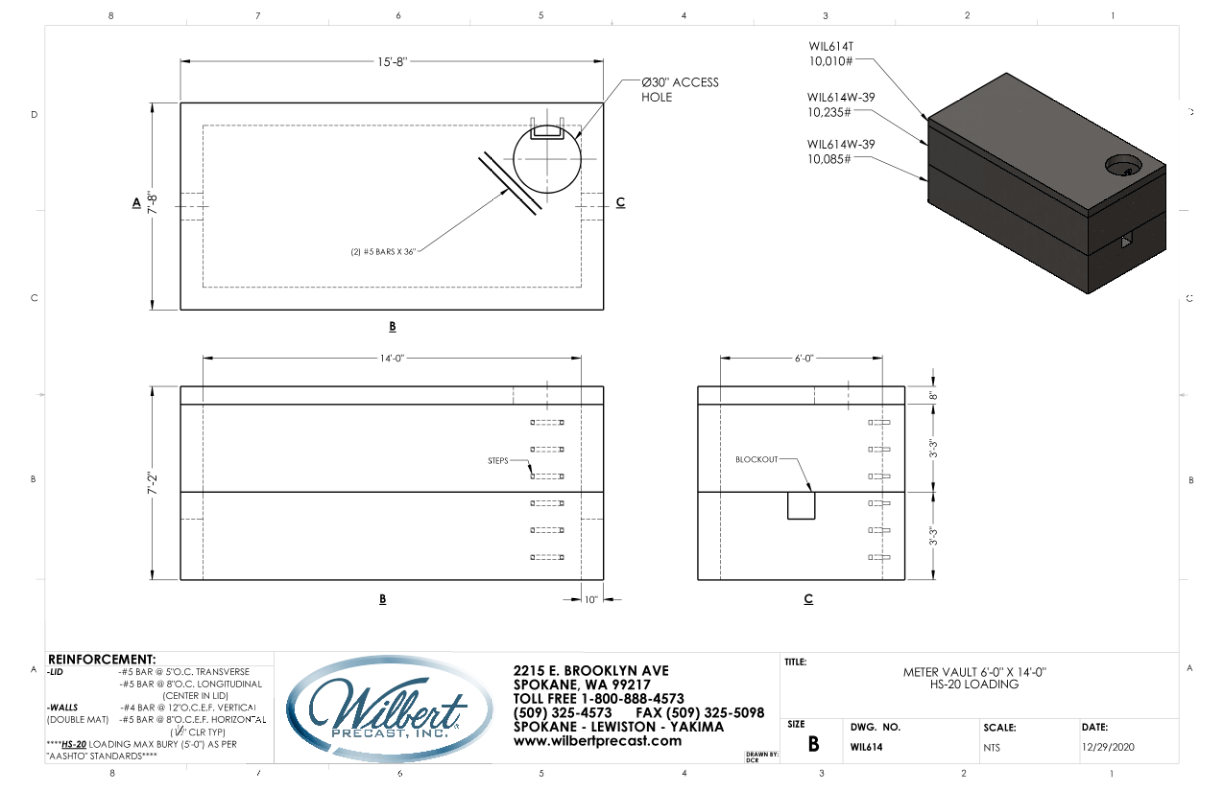

6′-0″ x 14′-0″ Utility Vault
Dimensions: 15'-8" X 7'-8" X 7'-8" Weight: 55481 lbs.
Product ID: WIL614
View PDF

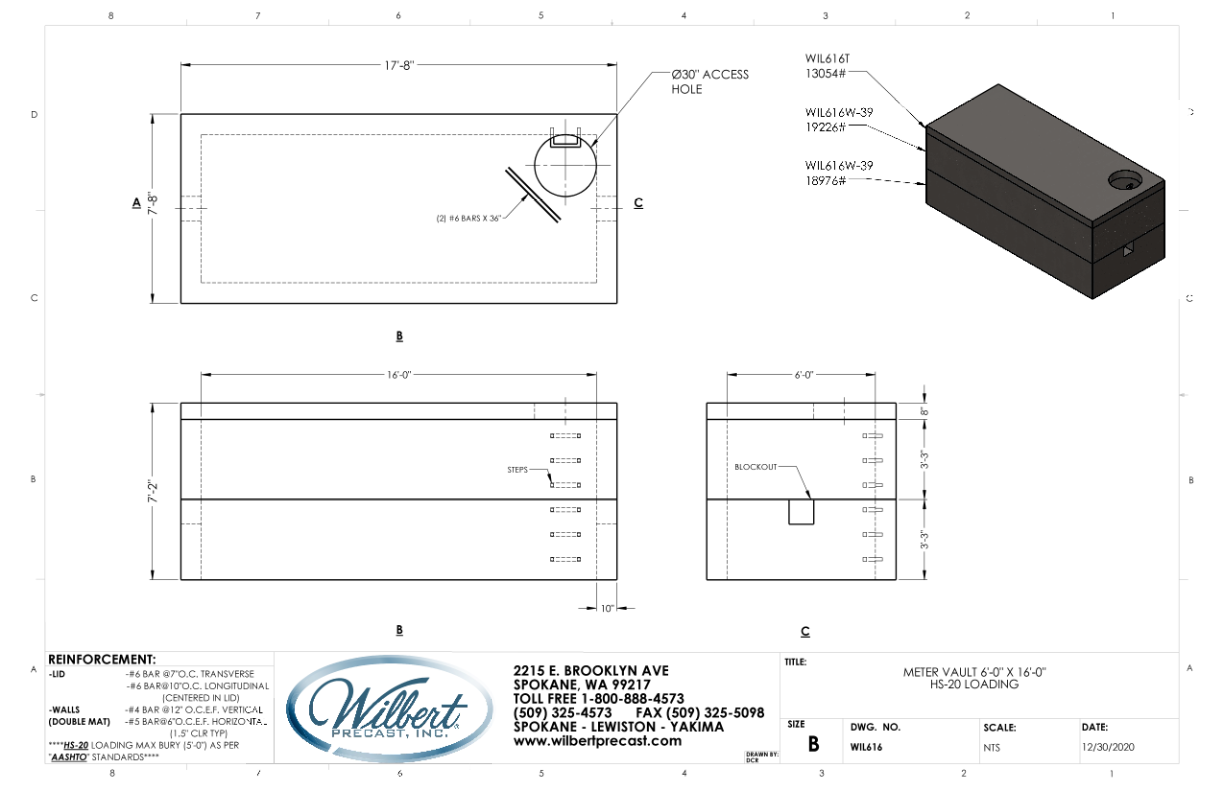

6′-0″ x 16′-0″ Utility Vault
Dimensions: 17'-8" X 7'-8" X 7'-8" Weight: 61415 lbs.
Product ID: WIL616
View PDF

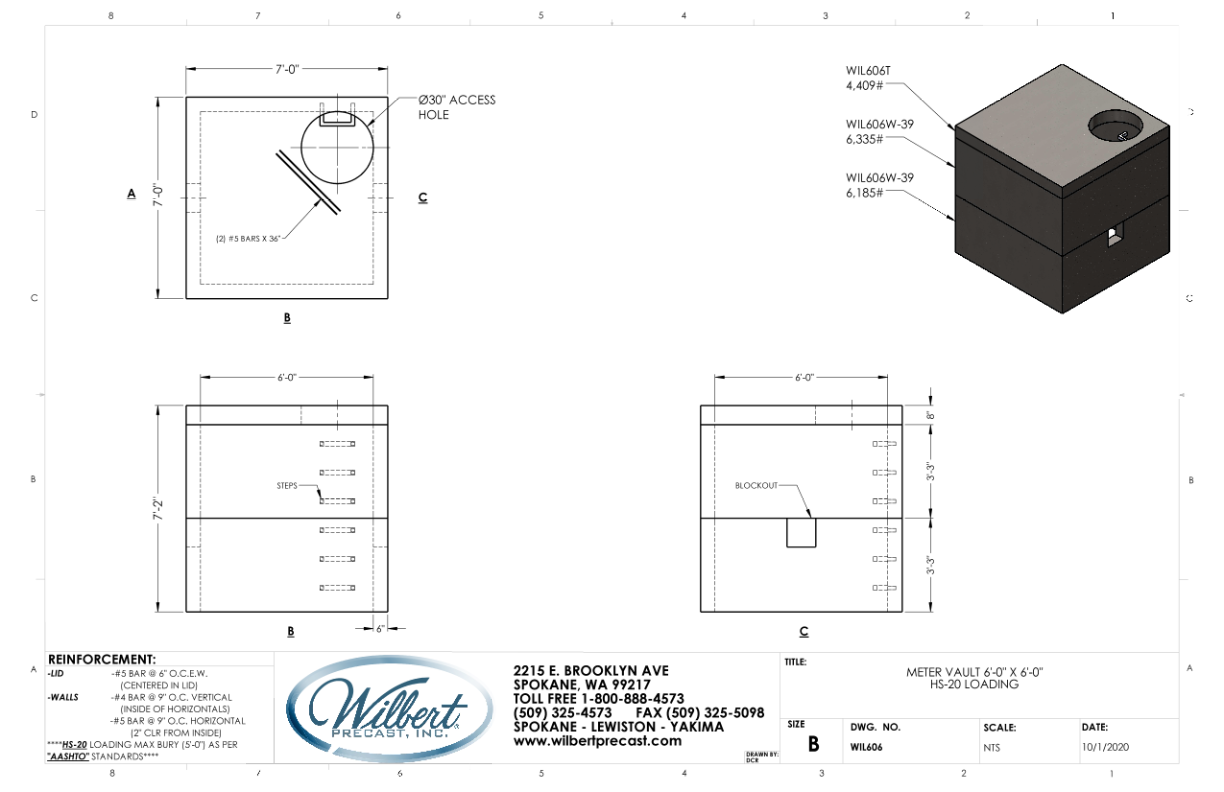

6′-0″ x 6′-0″ x 6′-6″ Inside Height
Weight: 16,929 lbs.
Product ID: WIL606
View PDF
6′-0″ x 7′-0″ x 6′-6″ Inside Height
Weight: 18,603 lbs.
Product ID: WIL607
View PDF

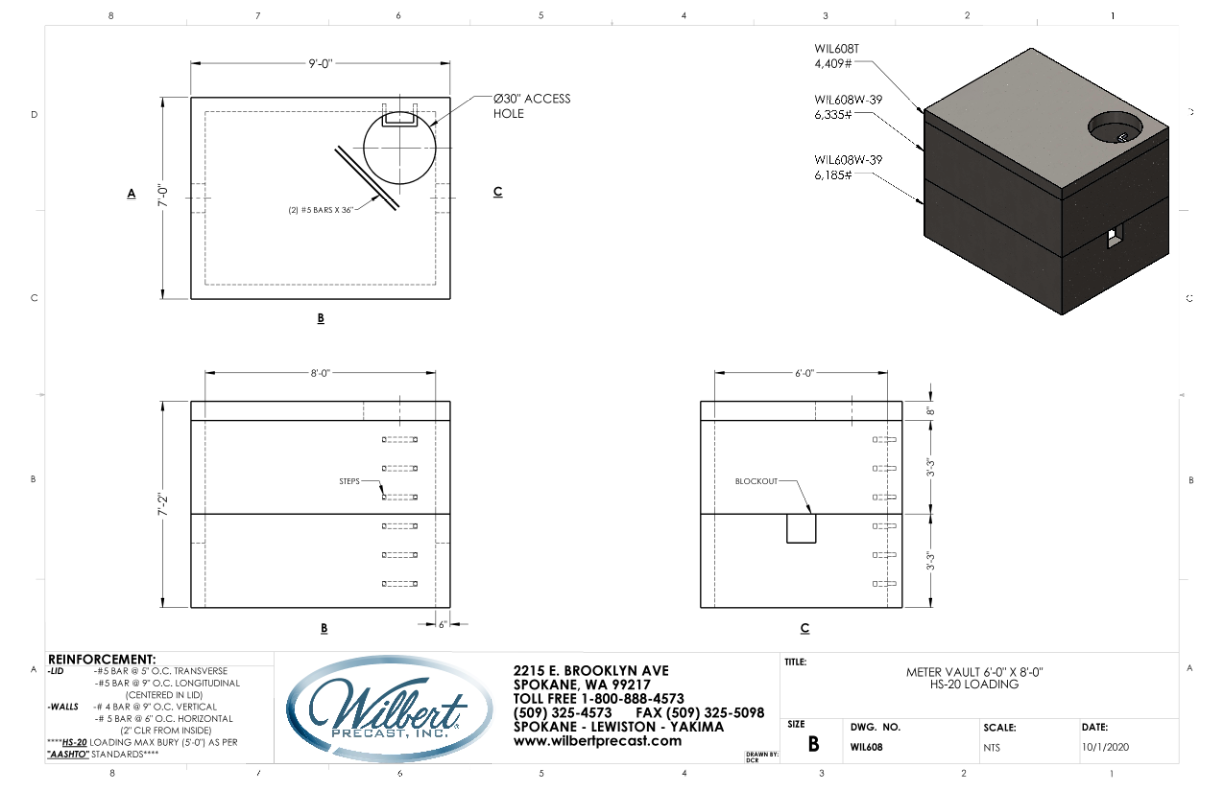

6′-0″ x 8′-0″ Utility Vault
Dimensions: 9'-0" X 7'-0" X 7'-8" Weight: 25006 lbs.
Product ID: WIL608
View PDF
6′-6″ X 4′-2″ WP575 Vault Base
Dimensions: 7'-2" x 4'-10" x 4'-0" Weight: 5960 lbs.
Product ID: WP575B
View PDF
6’3″ x 11’6″ x 6’0″ High Inside
Weight: 14,980 lbs.
Product ID: 1955
Product ID Double: 1905
View PDF
600 Gallon Single Depth Drywell
Dimensions: Ø4'-8" X 7'-11" Weight: 5010 lbs.
Product ID: #1804/#1801
View PDF
6000 Gallon Double Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 8'-7½" Weight: 66084 lbs.
Product ID: #916-6D
View PDF
6000 Gallon Single Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 8'-7½" Weight: 121490 lbs.
Product ID: #916-6S
View PDF
6000 Gallon Water Tank
Dimensions: 10'-0" x 17'-0" x 7'-1½" Weight: 55870 lbs.
Product ID: #916-4W
View PDF
7 Outlet Septic Distribution Box
Dimensions: 1'-8" X 11" X 1'-¾" Weight: 152 lbs.
Product ID: 1651-7
View PDF
7′ Window Well
Dimensions: 6'-4" x 3'-5½" x 7'-0" Product ID: WPW6435-7
View PDF
7′-0″ x 10′-0″ Utility Vault
Dimensions: 11'-4 Weight: 39666 lbs.
Product ID: WIL710
View PDF
7′-0″ x 12′-0″ Utility Vault
Dimensions: 13'-4" X 8'-4" X 7'-8" Weight: 45183 lbs.
Product ID: WIL712
View PDF
7′-0″ x 14′-0″ Utility Vault
Dimensions: 15'-8" X 8'-8" X 7'-8" Weight: 59847 lbs.
Product ID: WIL714
View PDF
7′-0″ x 8′-0″ Utility Vault
Dimensions: 9'-0" X 8'-0" X 7'-8" Weight: 27555 lbs.
Product ID: WIL708
View PDF
7′-2″ X 9′-4″ Pad Mount for WP57 Vault (PCORP)
Dimensions: 7'-2" X 9'-4" X 8" Weight: 5077 lbs.
Product ID: WP7294PM8T
View PDF
7000 Gallon Double Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 9'-7½" Weight: 70659 lbs.
Product ID: #916-7D
View PDF
7000 Gallon Single Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 9'-7½" Weight: 65607 lbs.
Product ID: #916-7S
View PDF
7000 Gallon Water Tank
Dimensions: 10'-0" x 17'-0" x 8'-1½" Weight: 59770 lbs.
Product ID: #916-5W
View PDF
7500 Gallon Water Tank
Dimensions: 10'-0" x 17'-0" x 8'-7½" Weight: 61720 lbs.
Product ID: #916-6W
View PDF
8′-0″ x 10′-0″ Utility Vault
Dimensions: 11'-4" X 9'-4" X 7'-8" Weight: 42949 lbs.
Product ID: WIL810
View PDF
8′-0″ x 12′-0″ Utility Vault
Dimensions: 13'-4" X 9'-4" X 7'-8" Weight: 48816 lbs.
Product ID: WIL812
View PDF
8′-0″ x 14′-0″ Utility Vault
Dimensions: 15'-8" X 9'-8" X 7'-8" Weight: 64215 lbs.
Product ID: WIL814
View PDF
8′-0″ x 16′-0″ Utility Vault
Dimensions: 17'-8" X 9'-8" X 7'-8" Weight: 70848 lbs.
Product ID: WIL816
View PDF
8000 Gallon Double Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 10'-1½" Weight: 72966 lbs.
Product ID: #916-8D
View PDF
8000 Gallon Single Compartment Septic Tank
Dimensions: 10'-0" x 17'-0" x 10'-1½" Weight: 67570 lbs.
Product ID: #916-8S
View PDF
8500 Gallon Water Tank
Dimensions: 10'-0" x 17'-0" x 9'-7½" Weight: 65607 lbs.
Product ID: #916-7W
View PDF
9200 Gallon Water Tank
Dimensions: 10'-0" x 17'-0" x 10'-1½" Weight: 67570 lbs.
Product ID: #916-8W
View PDF
Conversion Unit for COS Type 2 Catch Basin
Dimensions: 4'-6" X 3'-1" X 1'-6" Weight: 2162 lbs.
Product ID: WPCU
View PDF
Head Wall
Product ID: 4016
View PDF
Light Pole Base Flyer
Product ID: LPB Ø
View PDF
Ø24″ I.D. Grade Adjustment Rings
Dimensions: Ø2'-0" I.D. Product ID: GAR24-2, GAR24-3, GAR24-4, GAR24-5, GAR24-6, GAR24-13
View PDF
Ø24″ Type 1 Catch Basin
Dimensions: 3'-0 Weight: 1285 lbs.
Product ID: #1844-24
View PDF
Ø30″ I.D. Grade Adjustment Rings
Dimensions: Ø3'-4"O.D. X Ø2'-6" I.D. Product ID: GAR30-2, GAR30-4, GAR30-6
View PDF
Ø30″ Type 1 Catch Basin
Dimensions: 3'-6" X 3'-6" X 4'-0" Weight: lbs.
Product ID: #1844-30
View PDF
Ø36″ I.D. Grade Adjustment Rings
Dimensions: Ø4'-0" O.D. X Ø3'-0" I.D. Product ID: GAR36-4, GAR36-6
View PDF
Ø48″ Drywell Barrel With Ø16″ Knockouts
Dimensions: Ø4'-8" X 2'-2" Weight: 1193 lbs.
Product ID: 1806-2
View PDF
Ø48″ Drywell Base – 4′-4″
Dimensions: Ø4'-8" X 4'-10" Weight: 3252 lbs.
Product ID: #1803
View PDF
Ø48″ Drywell Base – 5′-5″
Dimensions: Ø4'-8" X 5'-5" Weight: 3748 lbs.
Product ID: #1804
View PDF
Ø48″ Drywell Cone
Dimensions: Ø4'-8 Weight: 1262 lbs.
Product ID: #1801
View PDF
Ø48″ Drywell Riser – 4′-0″
Dimensions: Ø4'-8" X 4'-1½" Weight: 1882 lbs.
Product ID: #1802
View PDF
Ø48″ Drywell Riser – 5′-0″
Dimensions: Ø4'-8" X 5' 1½" Weight: 2423 lbs.
Product ID: 1805
View PDF
Ø48″ Drywell Solid Riser
Dimensions: Ø4'-8" X 4'-4" Weight: 2864 lbs.
Product ID: 1806-4
View PDF
Ø48″ Manhole Base Product Sizes
Product ID: Ø48" Base
View PDF
Ø48″ Manhole FST with Centered Ø24″ Access
Dimensions: Ø4'-10" X 10¾" Weight: 1625 lbs.
Product ID: Ø48" FST
View PDF
Ø48″ Manhole FST with Centered Square Access
Dimensions: Ø4'-10" X 10¾" Weight: 1591 lbs.
Product ID: Ø48" FST
View PDF
Ø48″ Manhole FST with Offset Ø24″ Access
Dimensions: Ø4'-10" X 10¾" Weight: 1625 lbs.
Product ID: Ø48" FST
View PDF
Ø48″ Manhole FST with Offset Square Access
Dimensions: Ø4'-10 Weight: 1605 lbs.
Product ID: Ø48" FST
View PDF
Ø48″ Manhole Riser Product Sizes
Product ID: Ø48" Riser
View PDF
Ø48″ Type 2 Catch Basin
Product ID: WP Ø48" CB
View PDF
Ø54″ Manhole FST with Centered Ø24″ Access
Dimensions: Ø5'-5" X 1'-½" Weight: 2228 lbs.
Product ID: Ø54" FST
View PDF
Ø54″ Manhole FST with Offset Ø24″ Access
Dimensions: Ø5'-5" X 1'-½" Weight: 2228 lbs.
Product ID: Ø54" FST
View PDF
Ø54″ Manhole FST with Square Offset
Dimensions: Ø5'-5" X 1'-½" Weight: 2170 lbs.
Product ID: Ø54" FST
View PDF
Ø54″ Manhole Riser Product Sizes
Product ID: Ø54" Riser
View PDF
Ø72″ Double Depth Drywell
Dimensions: Ø7'-2" X 13'-6" Weight: 21555 lbs.
Product ID: Ø72" Drywell Barrel & Base, Ø48" 3' Cone
View PDF
Ø72″ Drywell Riser – 4′-6″
Dimensions: Ø7'-2" X 5'-0" Weight: 5828 lbs.
Product ID: Ø72" DBR
View PDF
Ø72″ Single Depth Drywell
Dimensions: Ø7'-2" X 6'-0" Weight: 14097 lbs.
Product ID: 4'-6" DW Barrel, Ø72" DW Base & Lid
View PDF
Ø72″ Triple Depth Drywell
Dimensions: Ø7'-2" X 18'-0" Weight: 27383 lbs.
Product ID: Ø72" DW Base & (3) Barrels, Ø72" DW Reducing Slab, Ø48" Cone
View PDF
Oil Containment Vault
Dimensions: 10'11" x 13'10" x 2'10" Weight: 28,562 lbs.
Product ID: WP810PM
View PDF
Pacificorp Approved Standard Vaults
Product ID: PCORP
View PDF
Riser “I,J,K” Options
Dimensions: 3'-1" X 4'-6" Product ID: GARGI-4, GARGI-6, GARGI-12
View PDF
Riser “S” for Catch Basin
Dimensions: 2'-6" x 2'-10" Product ID: GARCB-2, GARCB-3, GARCB-4, GARCB-6, GARCB-12
View PDF
Sand Trap Catch Basin
Dimensions: 3'-1½" X 2'-10" X 2'-4" Weight: 1791 lbs.
Product ID: 1850
View PDF
Special Curb Inlet
Dimensions: 6'-8" X 4'-8" X 1'-5½" Weight: 3757 lbs.
Product ID: 1840
View PDF
Type 1 Catch Basin for Parking Lot
Dimensions: 2'-10" X 2'-6" X 4'-8" Weight: 2616 lbs.
Product ID: 1827P
View PDF
Type 1 Catch Basin Riser
Dimensions: 2'-6" x 2'-10" x 3'-0" Weight: 1418 lbs.
Product ID: #1827R
View PDF
Type 1 Catch Basin w/ Optional Riser
Dimensions: 2'-6" x 2'-10" x 3'-8" Weight: 1864 lbs.
Product ID: #1827 , GARCB-#
View PDF
Type 1 Inlet
Dimensions: 2'-10" X 2'-6" X 2'-1" Weight: 1023 lbs.
Product ID: 1828
View PDF
Type 1L Catch Basin w/ Optional Slab
Dimensions: 3'-0" x 3'-4" x 3'-8" Weight: 2498 lbs.
Product ID: #1845 & #1846
View PDF
Type 2 Grate Inlet Base
Dimensions: 4'-6" X 3'-1" X 4'-6" Weight: 3633 lbs.
Product ID: 1832
View PDF
Type 2 Grate Inlet H Unit Lids
Dimensions: 4'-6" X 3'-1" X 1'-0" Weight: 1035 lbs.
Product ID: 1835
View PDF
WP777 Vault Series
Dimensions: See Individual Drawings Product ID: WP777
View PDF
WPE11 2′-0″ Riser
Dimensions: 4'-8" X 4'-8" X 2'-0" Weight: 1707 lbs.
Product ID: WPE11R24
View PDF
WPE11 Vault Base
Dimensions: 4'-8" X 4'-8" X 3'-7½" Weight: 2902 lbs.
Product ID: WPE11B
View PDF
WPE11 Vault Lid with Hatch Cast-In
Dimensions: 4'-8" X 4'-8" X 8" Weight: 1107 lbs.
Product ID: WPE11THS
View PDF
WPE11 Vault Lid with Ø24″ Hole
Dimensions: 4'-8" X 4'-8" X 8" Weight: 1753 lbs.
Product ID: WPE11T24
View PDF
WPE11 Vault Lid with Ø30″ Hole
Dimensions: 4'-8" X 4'-8" X 8" Weight: 1569 lbs.
Product ID: WPE11T30
View PDF
WPE11 Vault Series
Dimensions: See Individual Drawings Product ID: WPE11
View PDF
WPE11 Vault Smaller Riser Sizes
Dimensions: 4'-8" X 4'-8" Product ID: WPE11R6, WPE11R8, WPE11R12
View PDF
WPJ11 Type 1
Dimensions: 1'-10" X 1'-5" X 1'-0" Weight: 151 lbs.
Product ID: WPJ11-Type 1-ST
View PDF
WPJ11 Type 2
Dimensions: 2'-9" X 1'-10" X 1'-0" Weight: 301 lbs.
Product ID: WPJ11-Type 2-ST
View PDF
WSDOT Type 1 Drop Inlet
Dimensions: 7'-0" X 3'-6" X 4'-0" Weight: 4434 lbs.
Product ID: 1843
View PDF
WSDOT Type 2 Drop Inlet
Dimensions: 10'-0" X 3'-6" X 4'-0" Weight: 5779 lbs.
Product ID: 1843-2
View PDF
WSDOT Type 2 Grate Inlet
Dimensions: 4'-6" X 3'-1" X 5'-11⅞" Weight: 5080 lbs.
Product ID: 1832, 1835, Riser J
View PDF
